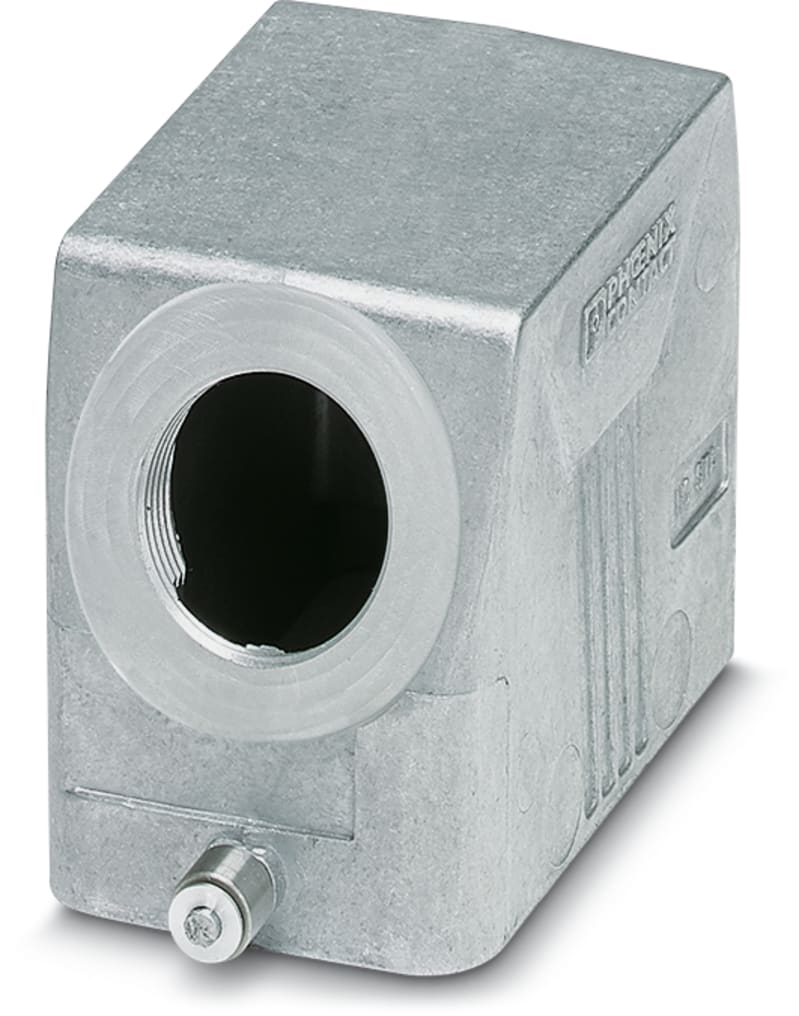

Housing (HC-STA-B10-HLFS-1STM25-EL-AL)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact HC-STA-B10-HLFS-1STM25-EL-AL Heavycon sleeve housing B10, For longitudinal clip, Aluminium, Withstands seawater, M25 nippelhull on the side.
Technical Specifications
- Manufacturer part number (MPN)
- HC-STA-B10-HLFS-1STM25-EL-AL
- EAN / GTIN
- 4055626059525
- Sales unit
- pcs
- Product type
- Housing
- Manufacturer order number
- 1412625
- Width
- 44 mm
- UV resistant
- No
- Height
- 57 mm
- Depth
- 73 mm
- With hinged lid
- No
- Type of locking
- Single locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- Yes
- Corrosion resistant
- Yes
- Length
- 73 mm
- Housing material
- Aluminium
- Coating housing
- Uncoated
- Impact strength
- IK08
- With distance piece
- No
- With sealing
- No
- Type of housing
- Plug case
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP66
- Position cable feed
- Sideways
- Position of the shackle
- None
- Mounting method of the cable gland
- Metric
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4055626059525
- SAP 1200046400
- Code 81897841
Product Documentation
More from Phoenix Contact
Phoenix Contact
Marking Strip ZB10 LGS 41-50
ZB10,LGS:FORTL.ZAHLEN 41-50
Phoenix Contact
Knife-Disconnect Terminal Block (ST 2,5-Mt)
ST 2,5-MT
Phoenix Contact
Range Box (AI SORTI BOX RD)
Phoenix Contact
Innplugbro 6 mm² KL 10-Pole
EBS 10- 8
Phoenix Contact
Surge-protection plug type 2
F-MS 12 ST
Phoenix Contact
Reserve Relay PR (REL-MR-230AC/21-21)
Phoenix Contact

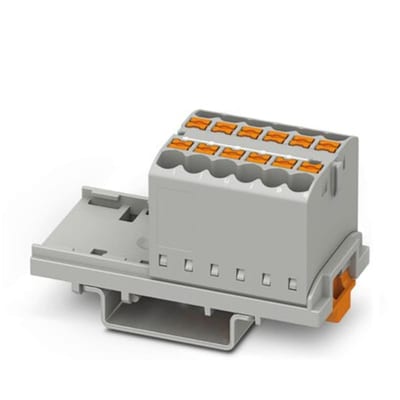

Distribution Block (PTFIX 12X2,5-NS35 GY)
Phoenix Contact

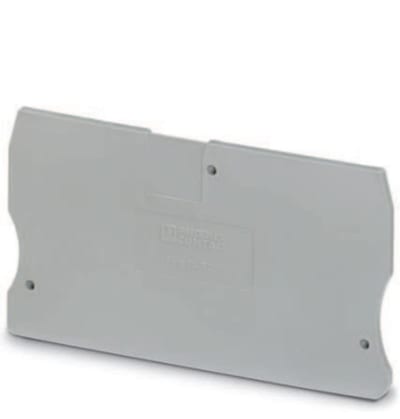

End Cover (D-ST 16)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy HC-STA-B10-HLFS-1STM25-EL-AL?
- HC-STA-B10-HLFS-1STM25-EL-AL can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is HC-STA-B10-HLFS-1STM25-EL-AL.
- What is the HS code for HC-STA-B10-HLFS-1STM25-EL-AL?
- The customs tariff (HS) code for HC-STA-B10-HLFS-1STM25-EL-AL is 8538.90.
- Who manufactures HC-STA-B10-HLFS-1STM25-EL-AL?
- HC-STA-B10-HLFS-1STM25-EL-AL is a Phoenix Contact product in the Electrical Components range.
- Is a datasheet available for HC-STA-B10-HLFS-1STM25-EL-AL?
- Yes — the HC-STA-B10-HLFS-1STM25-EL-AL datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for HC-STA-B10-HLFS-1STM25-EL-AL?
- The minimum order quantity is 1.
- Is HC-STA-B10-HLFS-1STM25-EL-AL available?
- Yes — HC-STA-B10-HLFS-1STM25-EL-AL is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
