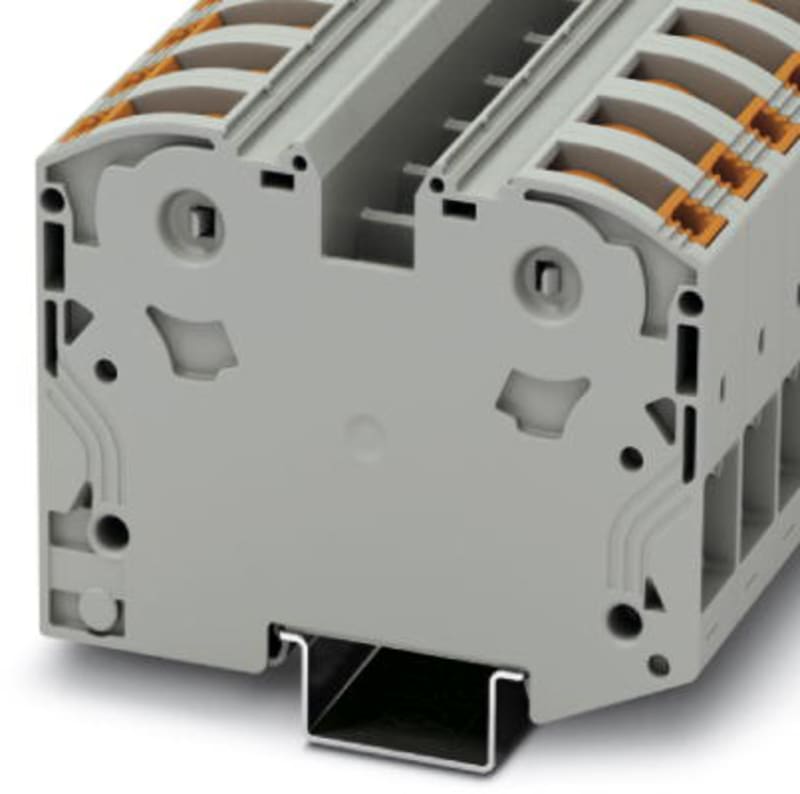

Phoenix Contact PTPOWER 35 High-Current Terminal Block 125 A 1000 V

Phoenix Contact PTPOWER 35 is a high-current terminal block rated 125 A at 1000 V, with Power-Turn connections accepting solid or stranded aluminium or copper conductors from 2.5-35 mm². The single-level block mounts on 35 mm DIN rail and provides two clamping points per level in a 16 mm-wide grey enclosure operable from -60 to 110 °C. Applications include main power distribution and machine feeder termination in industrial control panels.

Manufacturer part number (MPN)

PTPOWER 35

EAN / GTIN

4046356726016

Sales unit

pcs

Package quantity

10 pcs

Product type

High-Current Terminal Block

Manufacturer order number

3212064

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

2.5–35 mm²

Connectable conductor cross section multi-wired

2.5–35 mm²

Rated current In

125 A

Rated voltage

1000 V

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

16 mm

Width/grid dimension

16 mm

Height

91.6 mm

Depth

69.8 mm

Length

91.6 mm

Explosion-tested version 'Ex e'

No

Closing plate required

No

Colour

Grey

Internally connected stages

Yes

Country of origin

Poland

HS Code

8536.90

• EAN 4046356726016
• SAP 1000700578
• Code 8416701
