Phoenix Contact HEAVYCON HC-STA-B06 Surface Mount Aluminium Housing with Cover, Seawater-Resistant
Pricing
Request a quote
We reply within 24 hours
Product Description

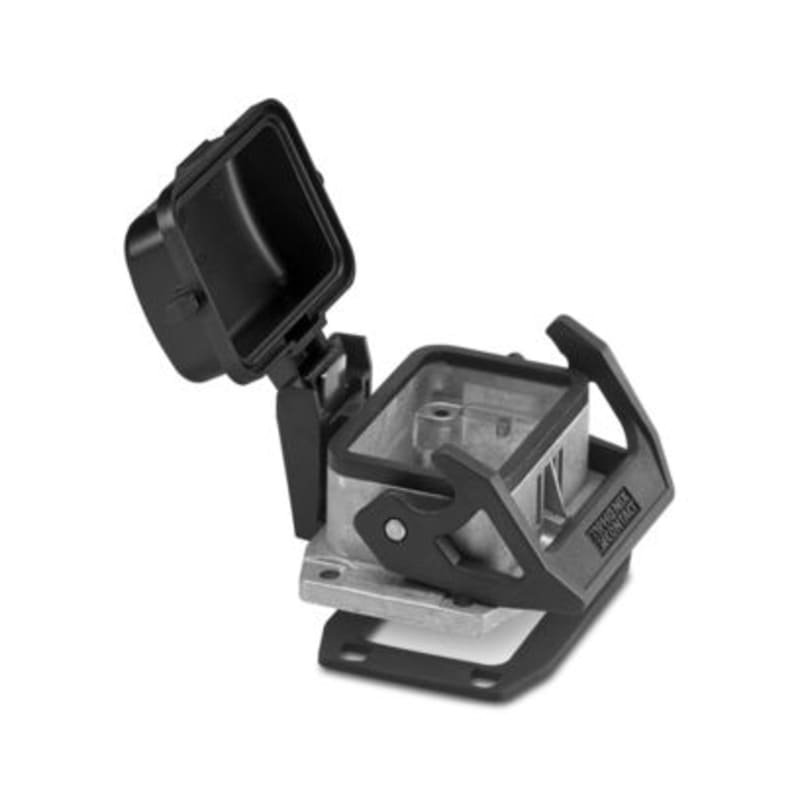

Phoenix Contact HC-STA-B06-BWSC-ELC-AL is a HEAVYCON size B6 surface-mount connector housing in seawater-resistant aluminium, 80.5 x 53 x 30.5 mm, with a hinged single-lever cover and integrated seal for IP66 protection when mated. The uncoated housing is EMC-rated and IK08 impact-resistant, with a top-cover shackle position and no cable gland fitted. Applications include machine-side interconnect on offshore, marine and coastal industrial equipment.
Technical Specifications
- Manufacturer part number (MPN)
- HC-STA-B06-BWSC-ELC-AL
- EAN / GTIN
- 4046356927208
- Sales unit
- pcs
- Product type
- Housing
- Manufacturer order number
- 1411319
- Width
- 53 mm
- UV resistant
- No
- Height
- 30.5 mm
- Depth
- 80.5 mm
- With hinged lid
- Yes
- Type of locking
- Single locking lever
- With cable screw gland
- No
- EMC-version
- Yes
- Corrosion resistant
- Yes
- Length
- 80.5 mm
- Housing material
- Aluminium
- Coating housing
- Uncoated
- Impact strength
- IK08
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Housing extension
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP66
- Position of the shackle
- Top cover
- Mounting method of the cable gland
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4046356927208
- SAP 1200046414
- Code 81898054
Product Documentation
More from Phoenix Contact
Phoenix Contact
Component Terminal Block (UTTB 2,5-DIO/U-O)
Phoenix Contact
Connection Terminal Block (AK 35)
Phoenix Contact
REDK JUMPER LINK 16MM2 FOR 2,5/4,0MM2 (rb UT 16-(2,5/4))
RB UT 16-(2,5/4)
Phoenix Contact
Marking Strip ZB6,QR 31-40
ZB6QR3140
Phoenix Contact
Fuse Plug (ST-SI-UK 4)
Phoenix Contact
JUMPER LINK FOR 50 mm² Terminal 3-Pole
FBI 3-20
Phoenix Contact
Fuse Modular Terminal Block (UK 10-Drehsi (5X20))
UK 10-DREHSI (5X20)
Phoenix Contact
Power supply QUINT4-PS/3AC/24DC/10
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy HC-STA-B06-BWSC-ELC-AL?
- HC-STA-B06-BWSC-ELC-AL can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is HC-STA-B06-BWSC-ELC-AL.
- What is the HS code for HC-STA-B06-BWSC-ELC-AL?
- The customs tariff (HS) code for HC-STA-B06-BWSC-ELC-AL is 8538.90.
- Who manufactures HC-STA-B06-BWSC-ELC-AL?
- HC-STA-B06-BWSC-ELC-AL is a Phoenix Contact product in the Electrical Components range.
- Is a datasheet available for HC-STA-B06-BWSC-ELC-AL?
- Yes — the HC-STA-B06-BWSC-ELC-AL datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for HC-STA-B06-BWSC-ELC-AL?
- The minimum order quantity is 1.
- Is HC-STA-B06-BWSC-ELC-AL available?
- Yes — HC-STA-B06-BWSC-ELC-AL is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
