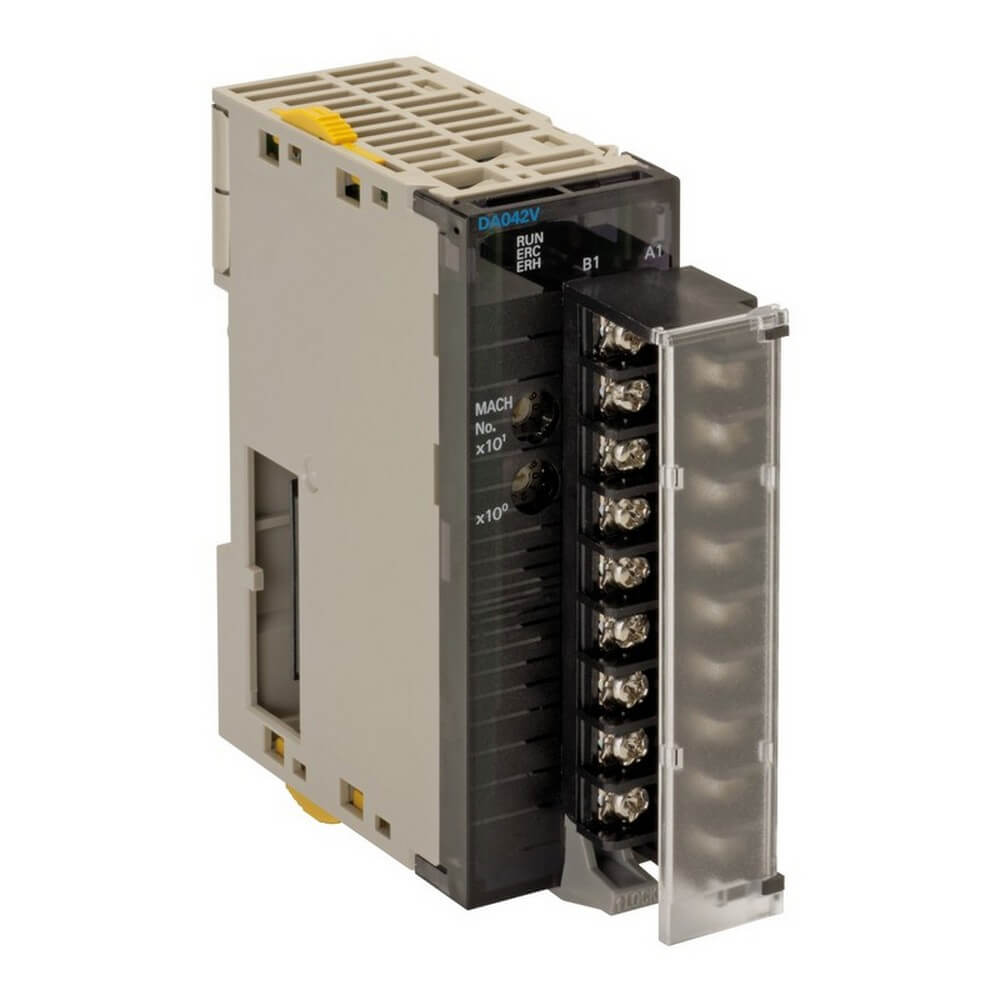

Omron CJ Analogue I/O and Control Units (CJ1W-DA041)
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron CJ Analogue I/O and Control Units (CJ1W-DA041). Series Omron CJ Analogue I/O and Control Units. Product family Automation Systems / Programmable Logic Controllers (PLC) / CJ2. I/O system CJ I/O Bus. Expansion unit type Special I/O Unit. Type of module Analog I/O. Number of analog inputs 0.
Technical Specifications
- Manufacturer part number (MPN)
- CJ1W-DA041
- EAN / GTIN
- 4536854912955
- Sales unit
- pcs
- Series
- Omron CJ Analogue I/O and Control Units
- Product family
- Automation Systems / Programmable Logic Controllers (PLC) / CJ2
- I/O system
- CJ I/O Bus
- Expansion unit type
- Special I/O Unit
- Type of module
- Analog I/O
- Number of analog inputs
- 0
- Resolution of the analog inputs
- 0 Bit
- Number of analog outputs
- 4
- Linear analog output type
- -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA
- Resolution of the analog outputs
- 12 Bit
- Conversion time
- 4000 ms/unit
- I/O connection type
- Screw
- Number of I/O connectors
- 1
- Detachable I/O terminal block
- TRUE
- Suitable for safety functions
- FALSE
- Product Height (unpacked)
- 90 mm
- Product Width (unpacked)
- 31 mm
- Product Depth (unpacked)
- 89 mm
- Product Weight (unpacked)
- 159 g
- Number of analogue outputs
- 4
- Analogue inputs configurable
- No
- Analogue outputs configurable
- Yes
- Input, current
- No
- Input, voltage
- No
- Input, resistor
- No
- Input, resistance thermometer
- No
- Input, thermocouple
- No
- Input signal, configurable
- No
- Resolution of the analogue inputs
- -8888 Bit
- Output, current
- Yes
- Output, voltage
- Yes
- Output signal configurable
- Yes
- Resolution of the analogue outputs
- 12 Bit
- Type of electric connection
- Screw connection
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- Level a
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 31 mm
- Height
- 90 mm
- Depth
- 89 mm
- Country of origin
- Netherlands
Standards & Compliance
- HS Code
- 8471.60
Cross References
- EAN 4536854912955
- SAP 1000158336
- Code 8121442
Product Documentation
