Omron
CJ2 CPU, 5KSTEG PRG. EIP KOMM
Part numberCJ2MCPU31EAN / GTIN4547648802024HS code8471.41
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

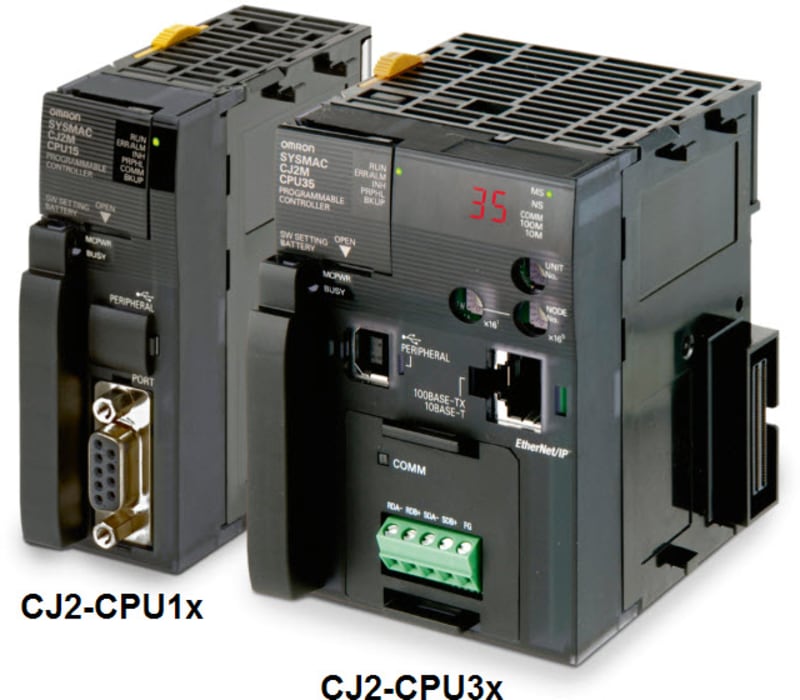

Omron CJ2MCPU31 CJ2M CPU with built-in EtherNet/IP port, 5k steg program, 32k ord data minne, 32k ord x 1 bank EM, 2,560 In/O max.
Technical Specifications
- Manufacturer part number (MPN)
- CJ2MCPU31
- EAN / GTIN
- 4547648802024
- Sales unit
- pcs
- Width
- 62 mm
- Model
- Modular
- Height
- 90 mm
- Depth
- 84.5 mm
- With display
- No
- Suitable for safety functions
- No
- Voltage type (supply voltage)
- AC/DC
- Type of memory
- FLASH
- Memory size
- 264 kByte
- Processing time (1K, binary operation)
- 0.04 ms
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Additional program memory possible
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- Redundancy
- No
- Suitable for rail mounting
- Yes
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- System accessory
- No
- Appendant operation agent (Ex ia)
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Wall mounting/direct mounting
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- IO link master
- No
- Max. number of time switches
- 4090
- Performance level according to EN ISO 13849-1
- Level a
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supply voltage AC 50 Hz
- 85–264 V
- Supply voltage AC 60 Hz
- 85–264 V
- Supply voltage DC
- 24 V
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- SIL according to IEC 61508
- None
- Country of origin
- Netherlands
Standards & Compliance
- HS Code
- 8471.41
Cross References
- EAN 4547648802024
- SAP 1000165276
- Code 8674130
Product Documentation
Document preview: CJ2 CPU, 5KSTEG PRG. EIP KOMM (CJ2MCPU31) — Specification sheet
