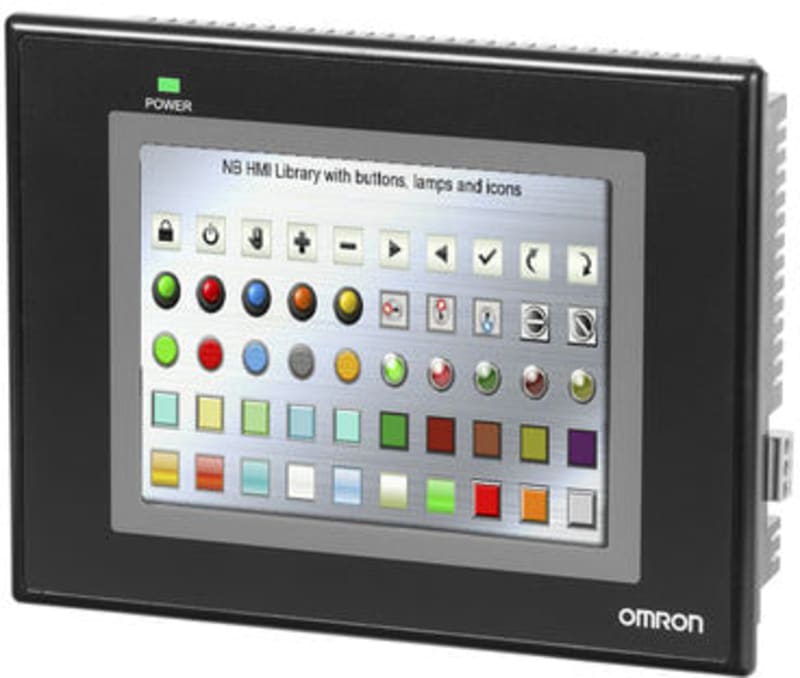

Omron NB5Q-TW00B 5.6-Inch QVGA TFT Colour HMI Touch Panel

Omron NB5Q-TW00B is a 5.6-inch QVGA (320 x 234) TFT colour touchscreen HMI with 65,536 colours and a 20.4-27.6 V DC supply. It provides two RS-232 ports, one combined RS-232C/422/485 port, and a USB slave port, plus USB host connectivity for firmware and project transfer. Modbus is supported natively for straightforward integration with a wide range of PLC and inverter platforms. Typical use is as a compact operator interface for machine control on packaging, food processing, and light industrial equipment.

Manufacturer part number (MPN)

NB5Q-TW00B EAN / GTIN: 4548583501836 Sales unit: pcs Certified for UL hazardous location division 1: No Certified for UL hazardous location division 2: No Certified for UL hazardous location group A (acetylene): No Certified for UL hazardous location group B (hydrogen): No Certified for UL hazardous location group C (ethylene): No Certified for UL hazardous location group D (propane): No Certified for UL hazardous location group E (metal dusts): No Certified for UL hazardous location class I: No Certified for UL hazardous location class II: No Certified for UL hazardous location class III: No Supporting protocol for EtherCAT: No Supply voltage DC: 20.4–27.6 V Voltage type (supply voltage): DC Number of HW-interfaces RS-232: 2 Number of HW-interfaces RS-422: 1 Number of HW-interfaces RS-485: 1 Number of HW-interfaces USB: 2 With SW interfaces: Yes Supporting protocol for TCP/IP: No Supporting protocol for PROFIBUS: No Supporting protocol for CAN: No Supporting protocol for INTERBUS: No Supporting protocol for ASI: No Supporting protocol for KNX: No Supporting protocol for Modbus: Yes Supporting protocol for Data-Highway: No Supporting protocol for DeviceNet: No Supporting protocol for SUCONET: No Supporting protocol for LON: No Supporting protocol for PROFINET IO: No Supporting protocol for PROFINET CBA: No Supporting protocol for SERCOS: No Supporting protocol for Foundation Fieldbus: No Supporting protocol for EtherNet/IP: No Supporting protocol for AS-Interface Safety at Work: No Supporting protocol for DeviceNet Safety: No Supporting protocol for INTERBUS-Safety: No Supporting protocol for PROFIsafe: No Supporting protocol for SafetyBUS p: No Supporting protocol for other bus systems: Yes Radio standard Bluetooth: No Radio standard WLAN 802.11: No Radio standard GPRS: No Radio standard GSM: No Mobile communications standard 3G (UMTS): No IO link master: No Type of display: TFT Colour display: Yes Number of colours of the display: 65536 Number of grey-scales/blue-scales of display: 64 Screen diagonal: 5.6 inch Number of pixels, horizontal: 320 Number of pixels, vertical: 234 Usable project memory/user memory: 131072 kByte With numeric keyboard: No With alpha numeric keyboard: No Touch technology: Resistive touch With touch screen: Yes With message indication: Yes With message system (incl. buffer and confirmation): Yes Process value representation (output) possible: No Process default value (input) possible: Yes With recipes: Yes Number of password levels: 16 With printer output: Yes Number of online languages: 8 Additional software components, loadable: Yes Degree of protection (IP), front side: IP65 Operating temperature: 0–50 °C Suitable for rail mounting: No Wall mounting/direct mounting: No Suitable for safety functions: No Width of the front: 184 mm Height of the front: 142 mm Built-in depth: 46 mm Country of origin: Netherlands

HS Code

8531.20

• EAN 4548583501836
• SAP 1000702451
• Code 8649700
