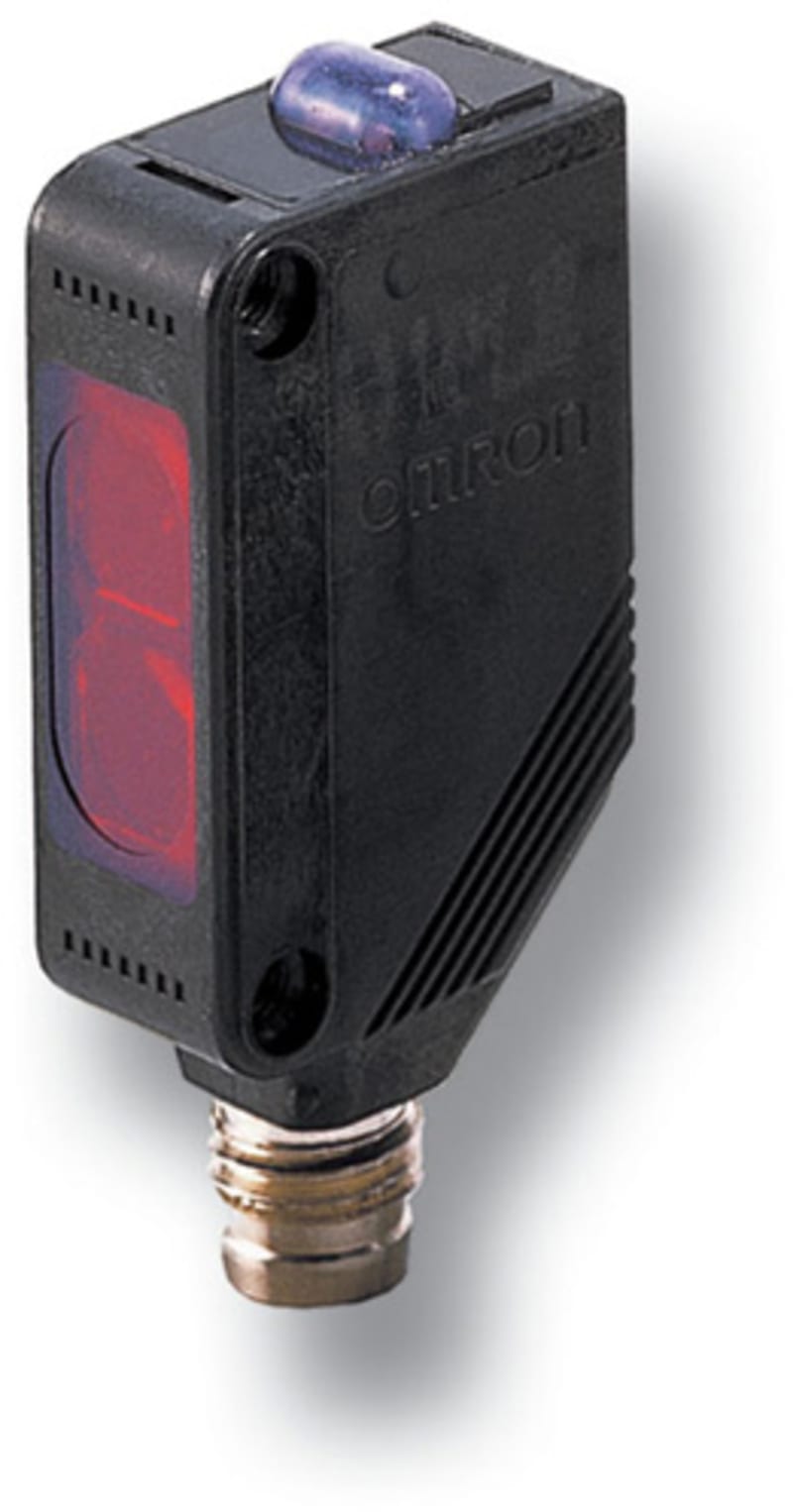

Photocell (E3ZD66)

Omron E3ZD66 Photocell, direct sensing, 100mm, DC, 3-conductor, NPN, M8 plug (requires bracket).

Manufacturer part number (MPN)

E3ZD66

EAN / GTIN

4536854498848

Sales unit

pcs

Voltage type

DC

Max. output current

100 mA

Housing material

Plastic

Ambient temperature

-25–55 °C

With time function

No

With reflector

No

Switching frequency

1000 Hz

Number of semiconductor outputs with signalling function

1

Type of electric connection

Connector M8

Type of switching output

NPN

Type of switch function

Normally open contact (NO)

Rated control supply voltage DC

10–30 V

Operation agent-safety class

Safety class 0

Setting procedure

Manual adjustment

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Laser protection class

None

Type of light

Infrared light

Max. output current at protected output

100 mA

With monitoring function downstream switching devices

No

With restart blockage

No

Response time

1 ms

Type of safety according to IEC 61496-1

1

Pre failure notice

No

Wavelength of the sensor

860 nm

Material of optical surface

Plastic

Material of cable sheath

Polyvinyl chloride (PVC)

Degree of protection (IP)

IP67

Analogue output 0 V ... 10 V

No

AWG-number

24

Width sensor

10.8 mm

Height of sensor

31 mm

With communication interface analogue

No

With communication interface DeviceNet

No

With communication interface Ethernet

No

Length of sensor

20 mm

Max. switching distance

100 mm

With other analogue output

No

Sensing mode

Light-/dark switching

Country of origin

Indonesia

HS Code

8536.49
