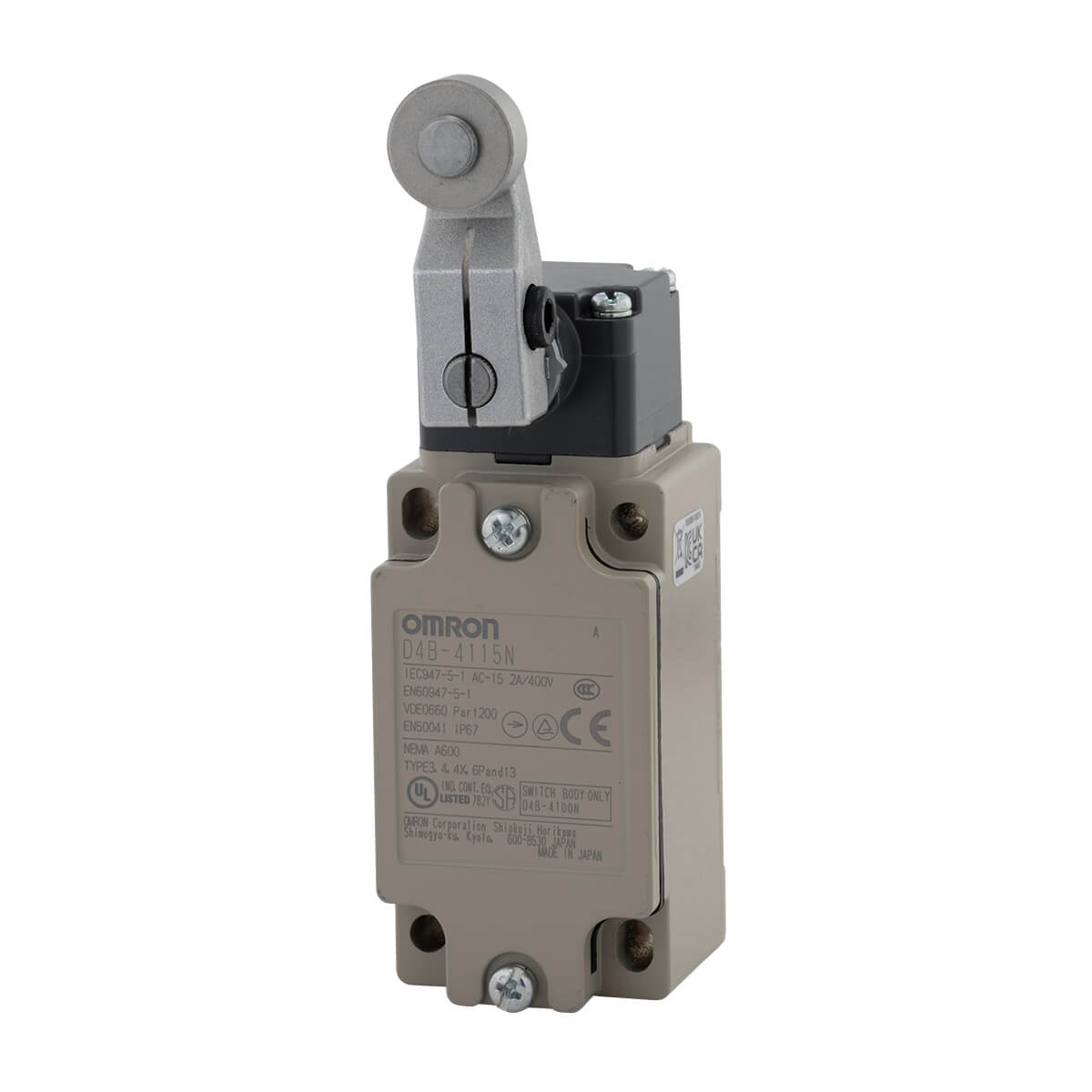

Omron D4B-_N safety switch (D4B-4115N)
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron D4B-_N safety switch (D4B-4115N). Omron D4B-4115N, safety switch, safety / safety switches. Product type Safety switch. Series Omron D4B-_N. Product family Safety / Safety Switches. Material housing Aluminium. Actuator type Roller lever. Actuator detail Metal roller.
Technical Specifications
- Manufacturer part number (MPN)
- D4B-4115N
- EAN / GTIN
- 4547648740999
- Sales unit
- pcs
- Product type
- Safety switch
- Series
- Omron D4B-_N
- Product family
- Safety / Safety Switches
- Material housing
- Aluminium
- Actuator type
- Roller lever
- Actuator detail
- Metal roller
- Connection method
- Terminal block
- Conduit size
- M20
- Cable entry direction
- Bottom
- Number of contacts, normally-open
- 1
- Make before break
- FALSE
- Switch action
- Snap action
- Direct opening mechanism
- TRUE
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 10 A
- Rated operation current Ie at DC-13, 230 V
- 0.4 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67
- Forced opening
- Yes
- Type of control element
- Roller lever
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 10 A
- Rated operation current Ie at DC-13, 125 V
- 0.8 A
- Rated operation current Ie at DC-13, 24 V
- 6 A
- Width sensor
- 40 mm
- Diameter sensor
- 17.5 mm
- Height of sensor
- 131.3 mm
- Length of sensor
- 43 mm
- Switching function latching
- No
- Ambient temperature during operating
- -40–80 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Alignment of the control element
- Roller cam straight
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4547648740999
- SAP 1200246452
- Code 82220331
Product Documentation
More from Omron
Omron
Power SUPPLY, 24VDC/180W/7,5
S8VS18024BP
Omron
IND.GIV,LONG,M8,NO,PNP,USKJ. (E2A-S08LN04-WP-B1 2M)
Omron
Laser PNP S/M FOR AVST 60M M8
E3Z-LT86
Omron
Relay 8-Pin 2 Changeover 10A 110VAC (mys 2304E)
MYS 2304E
Omron
Omron S8VS-A/B switch-mode power supply, 180 W, 24 V DC, 7.5 A
S8VS18024AP
Omron
S8VK-G CURRENTF. 480W,24VDC,20A
S8VK-G48024
Omron
Omron D4B-_N safety switch (D4B-4171N)
Omron
Jumper bar, 8 poles, blue (PYDN-31.0-080S)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy D4B-4115N?
- D4B-4115N can be ordered from cballast.com as a Omron catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Omron product?
- The manufacturer part number is D4B-4115N.
- What is the HS code for D4B-4115N?
- The customs tariff (HS) code for D4B-4115N is 8536.50.
- Who manufactures D4B-4115N?
- D4B-4115N is a Omron product in the Sensors & Instrumentation range.
- Is a datasheet available for D4B-4115N?
- Yes — the D4B-4115N datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for D4B-4115N?
- The minimum order quantity is 1.
- Is D4B-4115N available?
- Yes — D4B-4115N is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
