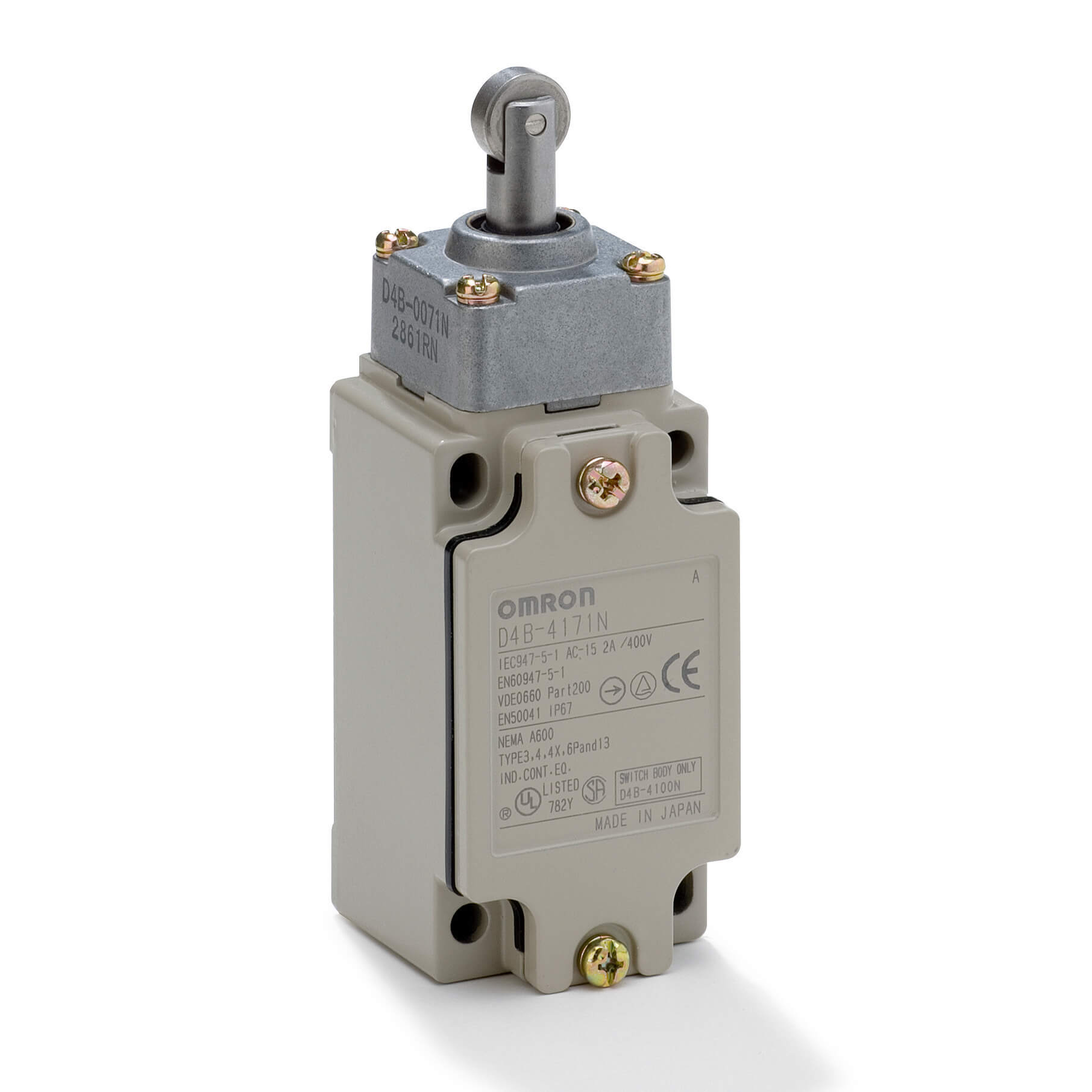

Omron D4B-_N safety switch (D4B-4171N)
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron D4B-_N safety switch (D4B-4171N). Omron D4B-4171N, safety switch, safety / safety switches. Product type Safety switch. Series Omron D4B-_N. Product family Safety / Safety Switches. Material housing Aluminium. Actuator type Roller plunger. Connection method Terminal block.
Technical Specifications
- Manufacturer part number (MPN)
- D4B-4171N
- EAN / GTIN
- 4548583369511
- Sales unit
- pcs
- Product type
- Safety switch
- Series
- Omron D4B-_N
- Product family
- Safety / Safety Switches
- Material housing
- Aluminium
- Actuator type
- Roller plunger
- Connection method
- Terminal block
- Conduit size
- M20
- Cable entry direction
- Bottom
- Number of contacts, normally-open
- 1
- Make before break
- FALSE
- Switch action
- Snap action
- Direct opening mechanism
- TRUE
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 10 A
- Rated operation current Ie at DC-13, 230 V
- 0.4 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 10 A
- Rated operation current Ie at DC-13, 125 V
- 0.8 A
- Rated operation current Ie at DC-13, 24 V
- 6 A
- Width sensor
- 40 mm
- Diameter sensor
- 12.7 mm
- Height of sensor
- 103 mm
- Length of sensor
- 43 mm
- Ambient temperature during operating
- -40–80 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4548583369511
- SAP 1000332187
- Code 81075237
