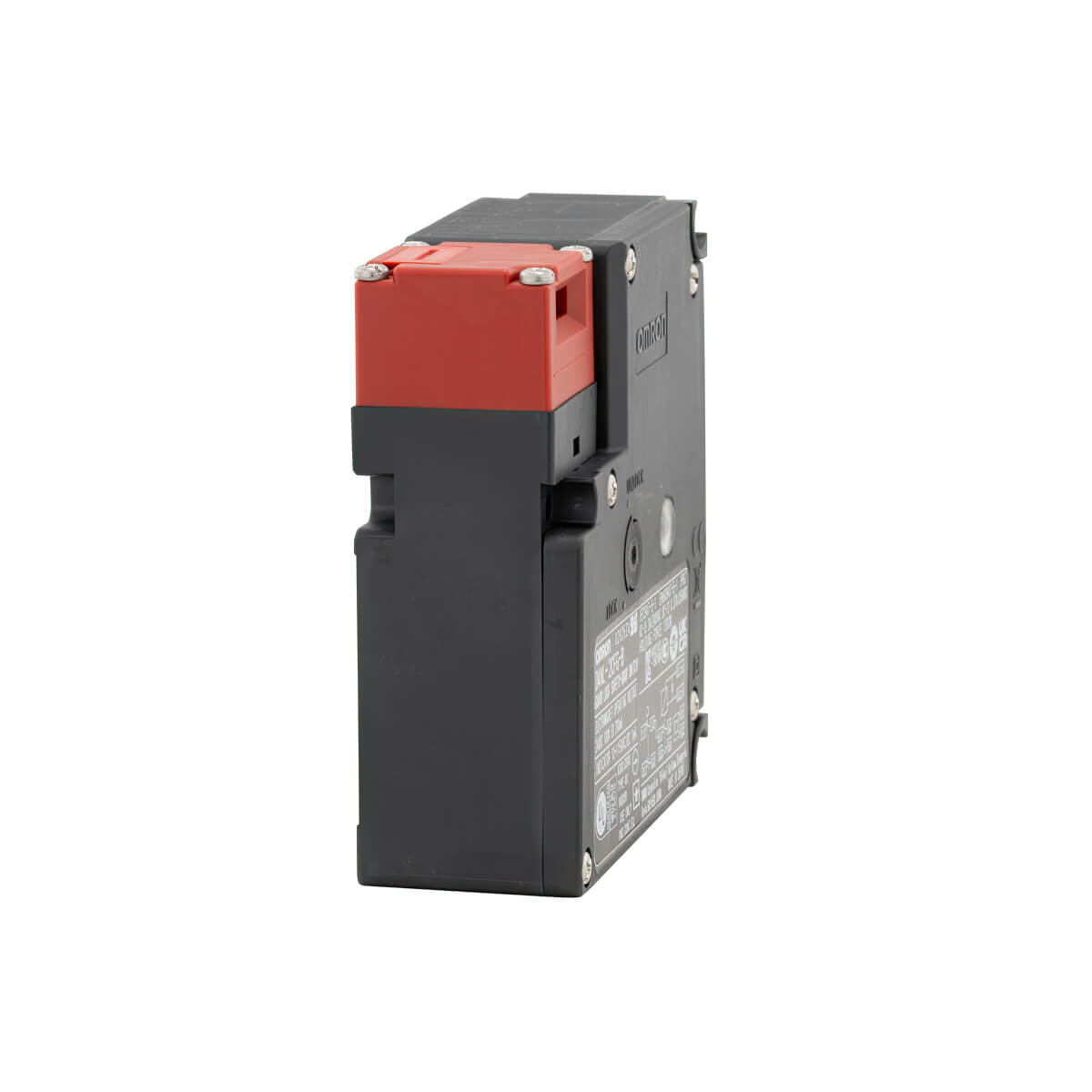

Omron D4NL safety switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron D4NL safety switch (D4NL-1AFA-B). Omron D4NL-1AFA-B, safety switch, safety / safety switches. Product type Safety switch. Series Omron D4NL. Product family Safety / Safety Switches. Door switch type Key-operated. Guard-lock TRUE. Material housing Plastic.
Technical Specifications
- Manufacturer part number (MPN)
- D4NL-1AFA-B
- EAN / GTIN
- 4536854898341
- Sales unit
- pcs
- Contact configuration
- 1 NC / 1 NO + 1 NC
- Product type
- Safety switch
- Series
- Omron D4NL
- Product family
- Safety / Safety Switches
- Door switch type
- Key-operated
- Guard-lock
- TRUE
- Material housing
- Plastic
- Ambient temperature (operating)
- -10-55 °C
- Connection method
- Screw terminal
- Cable length
- 0 m
- Direction of operation
- Adjustable
- Holding force
- 1300 N
- Door contacts NC
- 1
- Lock/Release key type
- Standard key
- Lock/Release key position
- Bottom
- Lock/Release key material
- Resin
- Solenoid voltage
- 24 V
- Degree of protection (IP)
- IP67
- Conduit size
- PG13.5
- Number of conduits
- 2
- Switch action
- Slow action
- Shape
- Cuboid
- Overall length of sensor
- 95 mm
- Height of sensor
- 35.5 mm
- Width of sensor
- 88.5 mm
- Lock/Release logic
- Power to unlock (Mechanical lock)
- Type of locking
- Quiescent current principle
- Suitable for safety functions
- Yes
- With status indication
- Yes
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Type of interface
- None
- Rated control supply voltage magnet drive DC
- 20.4–26.4 V
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Rated operation current Ie at DC-13, 125 V
- 0.27 A
- Width sensor
- 88.5 mm
- With escape release
- Yes
- Length of sensor
- 95 mm
- Ambient temperature during operating
- -10–55 °C
- Guard locking force
- 1300 N
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 2
- Type of guard locking
- Quiescent current principle
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4536854898341
- SAP 1000711559
- Code 8228061
Product Documentation
More from Omron
Omron

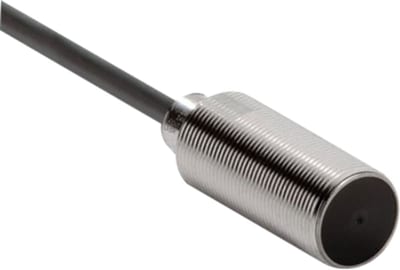

IND.GIV,Short,M8,NO,PNP,SKJ. (E2A-S08KS02-WP-B1 2M)
Omron

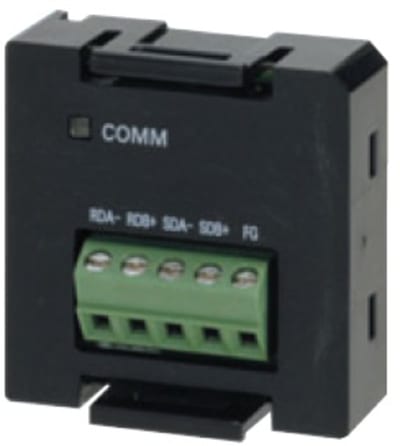

1 RS422/485 Port for CP1 PLS
CP1WCIF11
Omron
Jumper bar, pitch, 20POL, red
PYDN-7.75-200R
Omron
Programvare FOR FREKV./Servo
CX-DRIVE
Omron

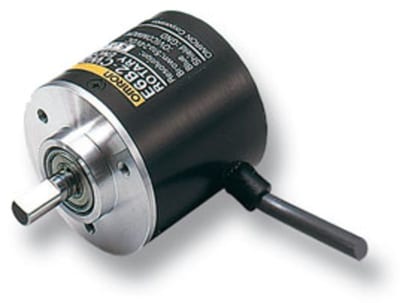

PHASE A-B-Z,NPN,500 P/Omdreinin
E6B2-CWZ6C 500P/R 2M
Omron

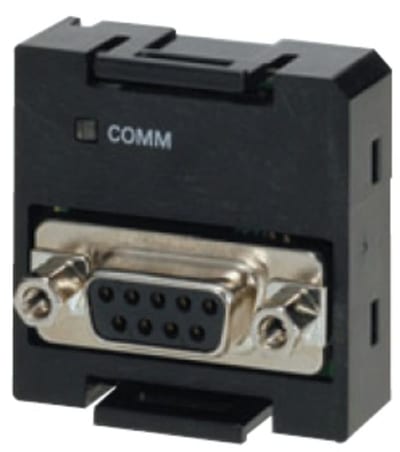

1 RS232 Port for CP1 PLS
CP1WCIF01
Omron

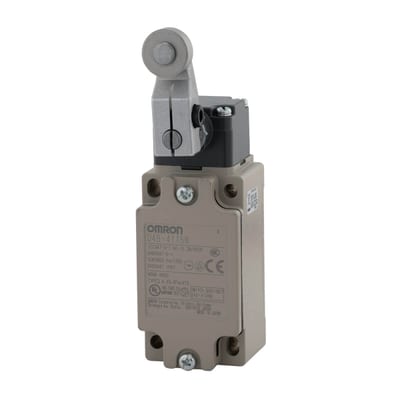

Omron D4B-_N safety switch (D4B-4115N)
Omron

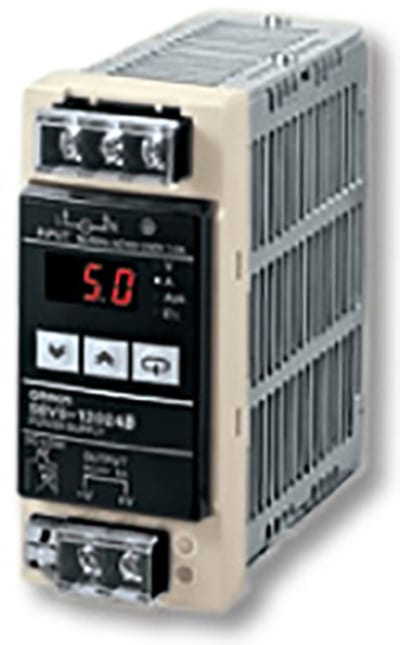

Power SUPPLY, 24VDC/180W/7,5
