Omron

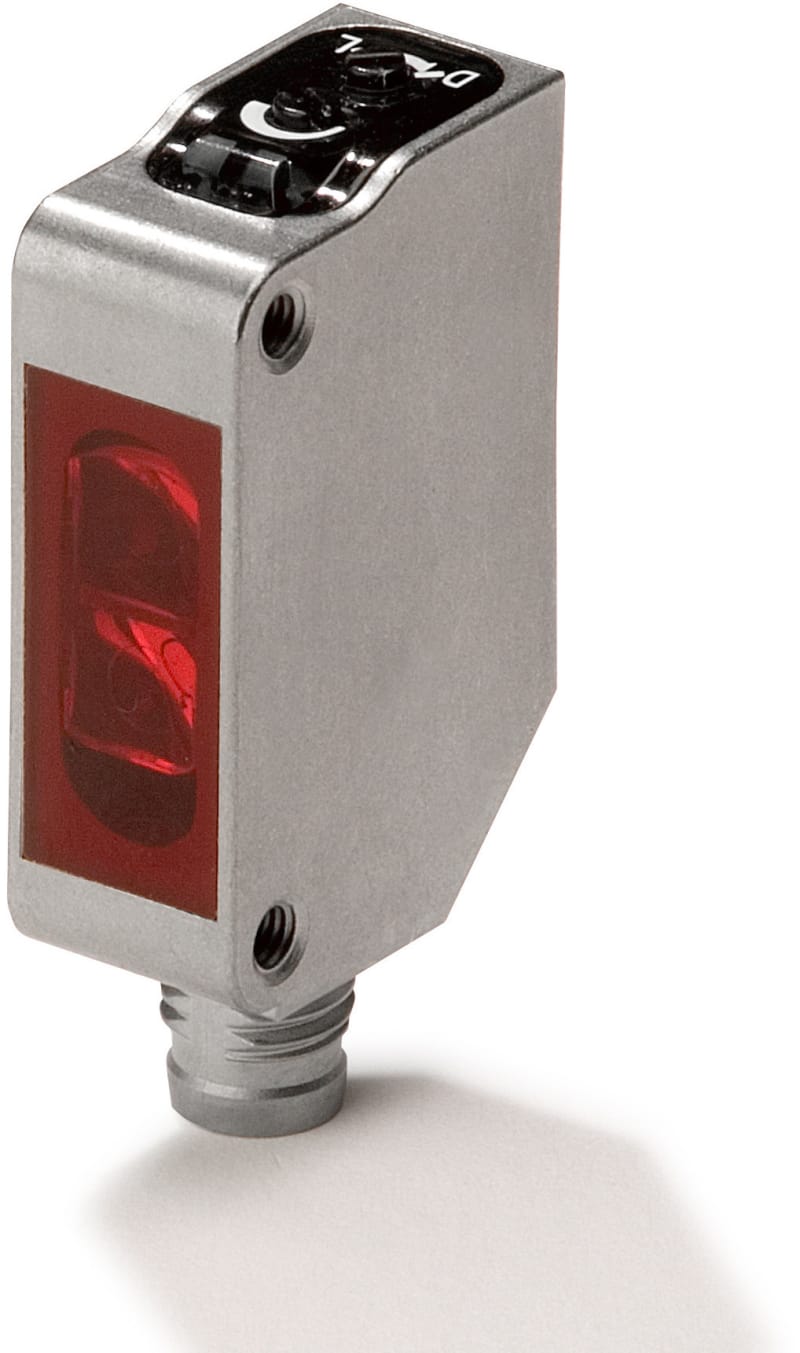

Reflector, 4M, RED LED, PNP, M8
Part numberE3ZM-R86EAN / GTIN4547648235778HS code8541.42
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E3ZM-R86 Photocell, reflector, metal housing, IP69K, 4m, M8 4pin, PNP output.
Technical Specifications
- Manufacturer part number (MPN)
- E3ZM-R86
- EAN / GTIN
- 4547648235778
- Sales unit
- pcs
- Connection
- M8 connector
- Output type
- PNP
- Light source
- Red LED
- Sensing method
- Retro-reflective
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 4000 mm
- Max. switching distance
- 4000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M8
- Type of switching output
- PNP
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 3
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 10.8 mm
- Height of sensor
- 32.2 mm
- Length of sensor
- 21 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Min. reflector distance
- 100 mm
- Ambient temperature
- -25–55 °C
- Response time
- 1 ms
- Switching frequency
- 1000 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 10–30 V
- Voltage type
- DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Wavelength of the sensor
- 660 nm
- Type of light
- Polarized red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8541.42
Cross References
- EAN 4547648235778
- SAP 1000158756
- Code 8724164
Product Documentation
Document preview: Reflector, 4M, RED LED, PNP, M8 (E3ZM-R86) — Specification sheet
