Omron

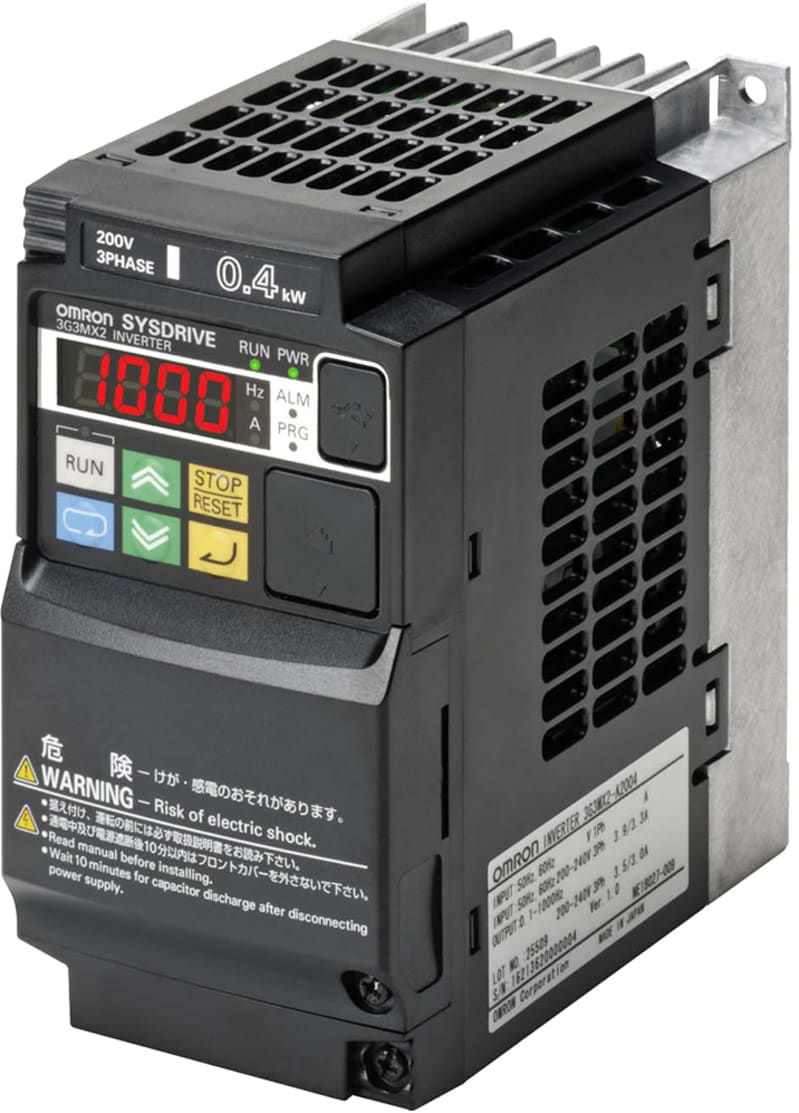

FR.OMF 400W 1X230
Part numberMX2AB004EEAN / GTIN4547648636865HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron MX2AB004E MX2 Variable-frequency drive, 0.4/0.55kW(HD/ND), 3.0/3.5A(HD/ND), 230VAC, 1-phase supply.
Technical Specifications
- Manufacturer part number (MPN)
- MX2AB004E
- EAN / GTIN
- 4547648636865
- HS code
- 8504.40
- Sales unit
- pcs
- Power
- 400 W
- Width
- 68 mm
- Height
- 128 mm
- Depth
- 123 mm
- With control element
- Yes
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 200–240 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Number of phases output
- 3
- Number of phases input
- 1
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 580 Hz
- Max. output at linear load at rated output voltage
- 0.4 kW
- Max. output at quadratic load at rated output voltage
- 0.55 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 240 V
- Nominal output current I2N
- 3.5 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4547648636865
- SAP 1000165180
- Code 8165295
Product Documentation
Document preview: FR.OMF 400W 1X230 — Specification sheet
More from Omron
Omron
Auxiliary Cover 1NO/1NC - J7KNA
J73KN-AM-11
Omron
Diffus 1M, INFRARED, PNP, 2M K
E3ZM-D82 2M
Omron
Omron E32 Standard cylindrical fiber sensor head, 2 m, sensing distance 900 mm, M6
E32-DC200
Omron
Sender/RECEIVER, 15M, Infrared
E3ZM-T81 2M
Omron
FR.OMF 550W 3X400
MX2A4004E
Omron
FR.OMF 1.5kW 3X400
MX2A4015E
Omron
Omron PF113AN Socket Plinth 11-pin, DIN-rail, screw terminals, Grey
Omron

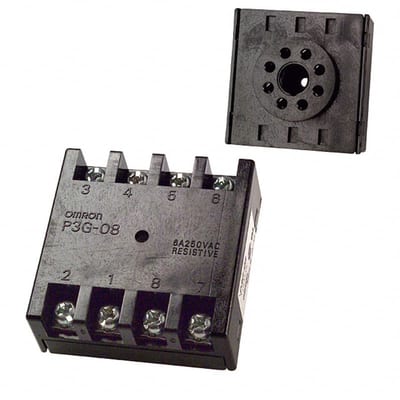

8-Pins Plinth FOR Panel/Front
