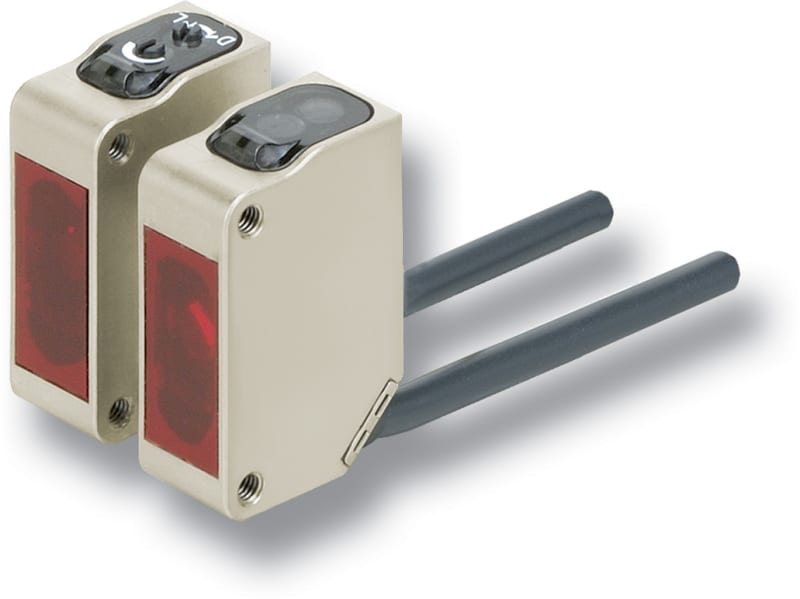

Reflector, 4M, RED LED, NPN, M8

Omron E3ZM-R66 Photocell, reflector, metal housing, IP69K, 4m, M8 4pin, NPN output.

Manufacturer part number (MPN)

E3ZM-R66

EAN / GTIN

4547648235754

Sales unit

pcs

Connection

M8 connector

Output type

NPN

Light source

Red LED

Sensing method

Retro-reflective

Pre failure notice

No

With time function

No

Rated switching distance

4000 mm

Max. switching distance

4000 mm

Max. output current

100 mA

With reflector

No

Analogue output 0 V ... 10 V

No

Analogue output 0 mA ... 20 mA

No

Analogue output 4 mA ... 20 mA

No

Analogue output -10 V ... +10 V

No

With other analogue output

No

Setting procedure

Manual adjustment

With communication interface analogue

No

With communication interface AS-Interface

No

With communication interface CANOpen

No

With communication interface DeviceNet

No

With communication interface Ethernet

No

With communication interface INTERBUS

No

With communication interface PROFIBUS

No

With communication interface RS-232

No

With communication interface RS-422

No

With communication interface RS-485

No

With communication interface SSD

No

With communication interface SSI

No

Number of semiconductor outputs with signalling function

1

Type of electric connection

Connector M8

Type of switching output

NPN

Type of switch function

Programmable/configurable

Operation agent-safety class

Safety class 0

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Width sensor

10.8 mm

Diameter sensor

-8888 mm

Height of sensor

32.2 mm

Length of sensor

21 mm

Sensing mode

Light-/dark switching

Material of optical surface

Plastic

Housing material

Metal

Max. output current at protected output

-8888 mA

Min. reflector distance

100 mm

Ambient temperature

-25–55 °C

Response time

1 ms

Transmission range of the safety field

-8888 m

Switching frequency

1000 Hz

Type of safety according to IEC 61496-1

1

Switching voltage of OSSD at state "high"

-8888 V

Rated control supply voltage DC

10–30 V

Voltage type

DC

With monitoring function downstream switching devices

No

Laser protection class

None

Wavelength of the sensor

660 nm

Type of light

Polarized red light

With restart blockage

No

Suitable for safety functions

No

Degree of protection (IP)

IP67

Country of origin

Japan

HS Code

8541.41
