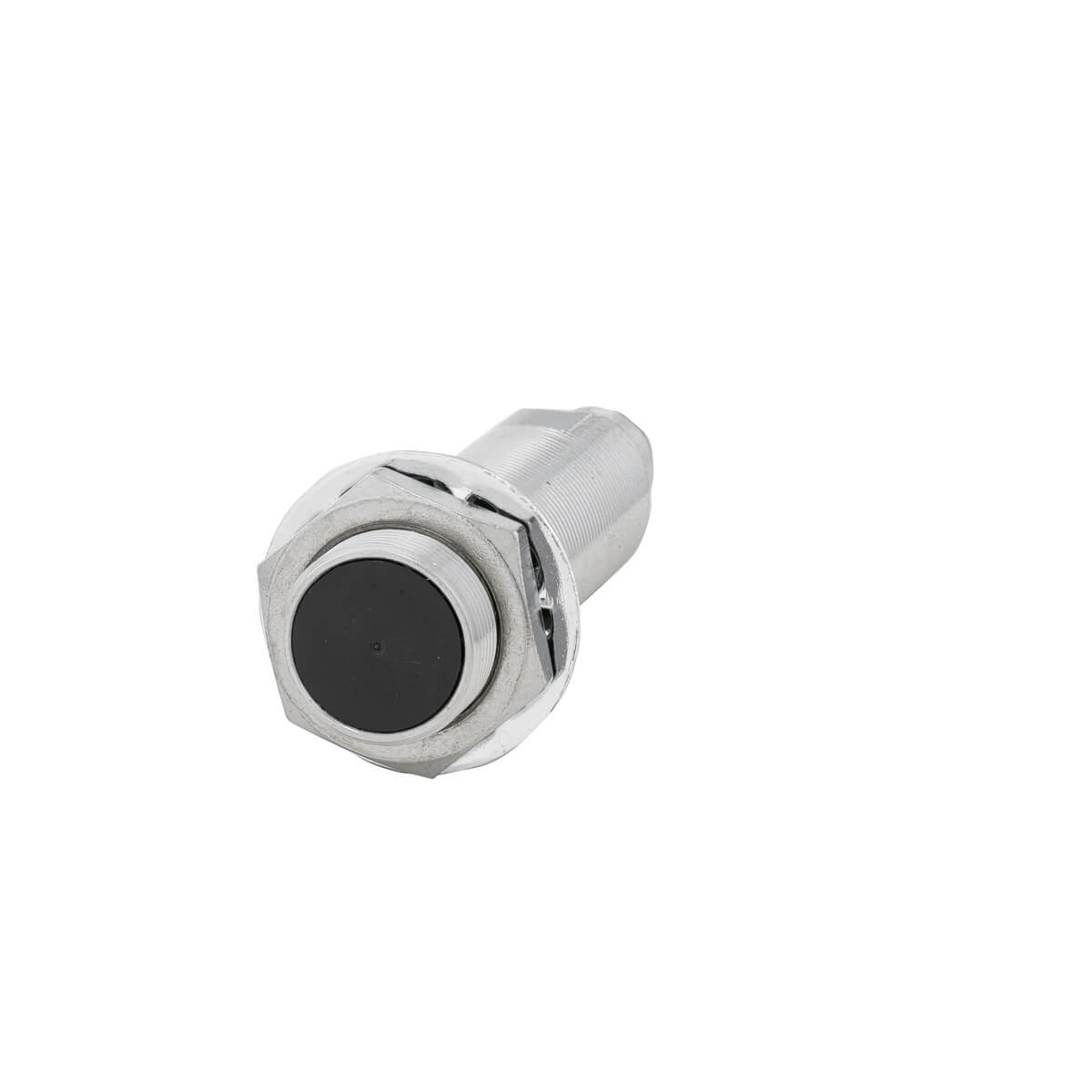

Omron E2E NEXT inductive sensor, sensing distance 8 mm, M18
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E2E NEXT inductive sensor, sensing distance 8 mm, M18 (E2E-X8B1TL18-M1). Omron E2E-X8B1TL18-M1, inductive sensor, sensing / inductive sensors. Product type Inductive sensor. Series Omron E2E NEXT. Product family Sensing / Inductive Sensors. Size M18. Mounting type Quasi-flush. Sensing distance 8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- E2E-X8B1TL18-M1
- EAN / GTIN
- 4549734476225
- Sales unit
- pcs
- Product type
- Inductive sensor
- Series
- Omron E2E NEXT
- Product family
- Sensing / Inductive Sensors
- Size
- M18
- Mounting type
- Quasi-flush
- Sensing distance
- 8 mm
- Overall length of sensor
- 75 mm
- Thread length
- 60 mm
- Material housing
- Brass, nickel plated
- Output type
- IO-Link, PNP
- Operation mode
- NO
- Connection method
- Connector M12
- IO-Link function
- TRUE
- IO-Link baud rate
- COM3 (230.4 kbps)
- Degree of protection (IP)
- IP67/IP69K
- Length of sensor
- 75 mm
- Diameter sensor
- 18 mm
- Mechanical mounting condition for sensor
- Quasi-flat
- Switching distance
- 8 mm
- Suitable for safety functions
- No
- Type of switch function
- Normally open contact (NO)
- Type of switching output
- PNP
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Type of actuation
- Metallic Target
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- Cascadable
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Supply voltage
- 10–30 V
- Rated control supply voltage DC
- 10–30 V
- Voltage type
- DC
- Switching frequency
- 500 Hz
- With monitoring function downstream switching devices
- No
- Housing material
- Metal
- Compression-resistant
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4549734476225
- SAP 1200556340
- Code 82947584
