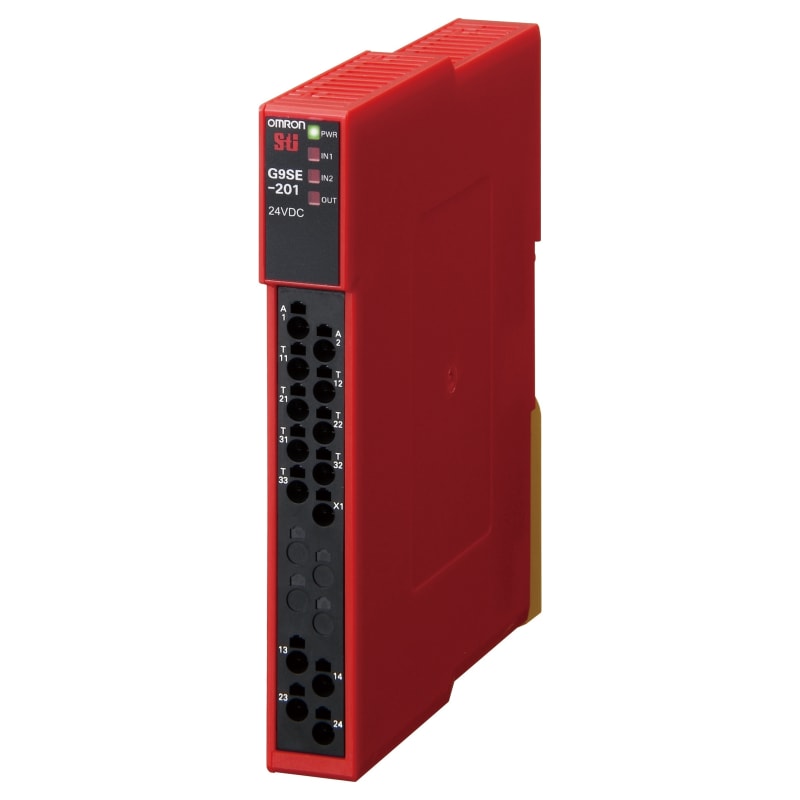

Omron G9SE-201 DC24
Pricing
Request a quote
We reply within 24 hours
Overview
Omron G9SE-201 DC24 is listed under Safety & Detection / Safety Relays. Sales unit: pcs; Operating voltage AC 50 Hz: 0–250 V; Operating voltage AC 60 Hz: 0–250 V; Operating voltage DC: 0–30 V; Supply voltage DC: 20.4–26.4 V; Rated switch current: 5 A.
Technical Specifications
- Manufacturer part number (MPN)
- G9SE-201 DC24
- EAN / GTIN
- 4549734169332
- Sales unit
- pcs
- Operating voltage AC 50 Hz
- 0–250 V
- Operating voltage AC 60 Hz
- 0–250 V
- Operating voltage DC
- 0–30 V
- Supply voltage DC
- 20.4–26.4 V
- Rated switch current
- 5 A
- Voltage type (operating voltage)
- AC/DC
- Model
- Basic device
- Suitable for monitoring of position switches
- Yes
- Suitable for monitoring of emergency-stop circuits
- Yes
- Suitable for monitoring of valves
- Yes
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of magnetic switches
- Yes
- Suitable for monitoring of proximity switches
- Yes
- Type of electric connection
- Spring clamp connection
- Suitable for rail mounting
- Yes
- Rated control supply voltage DC
- 20.4–26.4 V
- Voltage type for actuating
- DC
- With detachable clamps
- No
- Evaluation inputs
- One- and two-channel
- With start input
- Yes
- With muting function
- No
- With feedback circuit
- Yes
- Number of outputs, safety related, undelayed, with contact
- 2
- Type of safety according to IEC 61496-1
- 4
- Stop category according to IEC 60204
- 0
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- With approval according to UL
- Yes
- Width
- 17.5 mm
- Height
- 133 mm
- Depth
- 111.6 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.41
Cross References
- EAN 4549734169332
- SAP 1200104356
- Code 81973049
Product Documentation
