Omron
MX2A2007E FR.OMF 1.1kW 3X230
Part number3G3MX2-A2007-EEAN / GTIN4547648636766HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron 3G3MX2-A2007-E MX2 variable-frequency drive, 1.1/1.1kW(HD/ND), 5.0/6.0A(HD/ND), 230VAC, 3-phase supply.
Technical Specifications
- Manufacturer part number (MPN)
- 3G3MX2-A2007-E
- EAN / GTIN
- 4547648636766
- HS code
- 8504.40
- Sales unit
- pcs
- Power
- 1.1 kW
- Width
- 68 mm
- Height
- 128 mm
- Depth
- 146 mm
- With control element
- Yes
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 200–240 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 580 Hz
- Max. output at linear load at rated output voltage
- 0.75 kW
- Max. output at quadratic load at rated output voltage
- 1.1 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 240 V
- Nominal output current I2N
- 6 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4547648636766
- SAP 1000711374
- Code 8676636
Product Documentation
Document preview: MX2A2007E FR.OMF 1.1kW 3X230 (3G3MX2-A2007-E) — Specification sheet
More from Omron
Omron
Auxiliary Cover 4NO - J7KNA-AR
J73KN-A-40
Omron

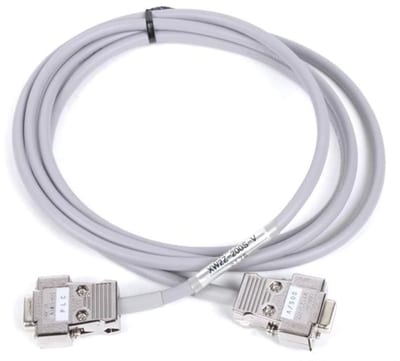

Omron XW2Z-500T RS-232C Cable between NB HMI and CJ2/CS1/CP1 PLC, 5 m
