Omron

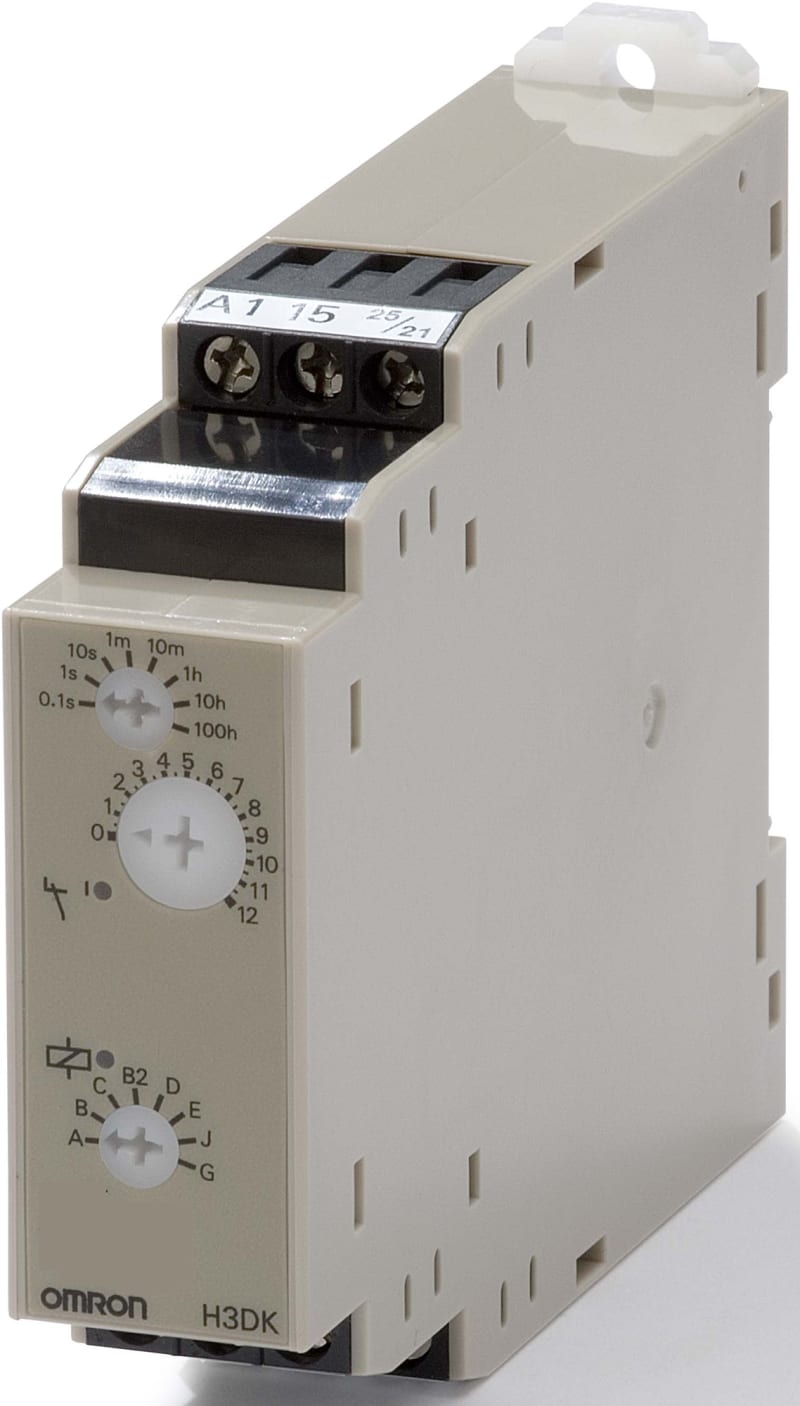

TIME RELAY Multi-function 12VDC (H3DKM1ADC12V)
Part numberH3DKM1ADC12VEAN / GTIN4548583002340HS code8536.90
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron H3DKM1ADC12V Time relay, multi-voltage, multifunction, 8 functions, 1 reléoutput, 12VDC.
Technical Specifications
- Manufacturer part number (MPN)
- H3DKM1ADC12V
- EAN / GTIN
- 4548583002340
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 12 V DC
- Type of electric connection
- Screw connection
- Function delay-on energization
- Yes
- Function delay on de-energization
- Yes
- Function floating contact on energization
- Yes
- Function floating contact on de-energization
- Yes
- Function star-delta
- No
- Function pulse shaping
- No
- Function flashing, starting with pause, fixed time
- No
- Function flashing, starting with pulse, fixed time
- Yes
- Clock function, starting with pause, variable
- No
- Clock function, starting with pulse, variable
- Yes
- With plug-in socket
- No
- Remote operation possible
- No
- Suitable as remote control
- No
- Pluggable on auxiliary contact block
- No
- Rated control supply voltage DC
- 12 V
- Voltage type for actuating
- DC
- Time range
- 0.1–4320000 s
- Number of outputs, delayed, change-over contact
- 1
- Outputs, reversible delayed/undelayed
- No
- With semiconductor output
- No
- Width
- 22.5 mm
- Height
- 79 mm
- Depth
- 100 mm
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4548583002340
- SAP 1000165377
- Code 8166055
Product Documentation
Document preview: TIME RELAY Multi-function 12VDC (H3DKM1ADC12V) — Specification sheet
