OBO Bettermann
Surge Protection Device 3-Pole V20 C/3-IT
Part numberV20C 3385EAN / GTIN4012195240150HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

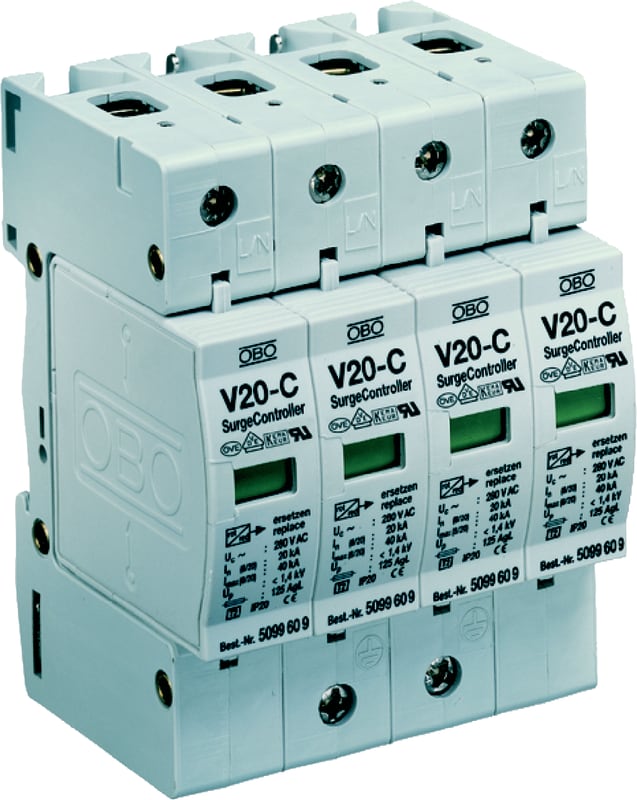

OBO Bettermann V20C 3385 Type 2 surge protection, class C, with pluggable modules.
Technical Specifications
- Manufacturer part number (MPN)
- V20C 3385
- EAN / GTIN
- 4012195240150
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Number of poles
- 3P
- System configuration
- TN
- System configuration DC
- No
- System configuration IT
- Yes
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- No
- Number of conductors (without earthing)
- 3
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 385 V
- Max. continuous voltage AC
- 385 V
- Voltage protection level
- 1.7 kV
- Voltage protection level L-N
- 20 kV
- Voltage protection level N-PE
- 20 kV
- Short-circuit breaking capacity (Isccr)
- 20 kA
- Integrated backup fuse
- Yes
- Mounting method
- DIN rail (top hat rail) 35 mm
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 35 mm²
- With remote signalling contact
- No
- Signalling at the device
- None
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4012195240150
- SAP 1000039150
- Code 8786968
Product Documentation
Document preview: Surge Protection Device 3-Pole V20 C/3-IT (V20C 3385) — Specification sheet
