OBO Bettermann

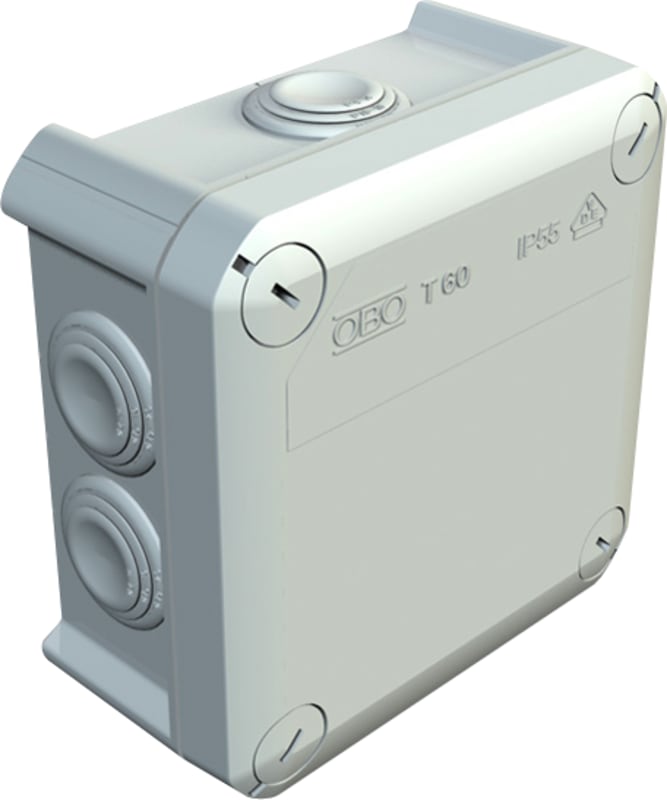

Junction BOX T60-WHITE 114X114X57
Part number2007525EAN / GTIN4012195286660HS code8538.10
Enclosures
Junction Boxes
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
OBO Bettermann 2007525 Halogen-free Junction box, IP66, 114mm x 114mm x 57mm, White.
Technical Specifications
- Manufacturer part number (MPN)
- 2007525
- EAN / GTIN
- 4012195286660
- Sales unit
- pcs
- Package quantity
- 5 pcs
- EL number
- 2007525
- ETIM class
- EC001052 - Solderless terminals for copper conductors
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 14.986 mm
- Product width
- 130.048 mm
- Product length / depth
- 180.086 mm
- Bolt dimension (metric)
- 8
- Suitable for solid conductors
- No
- Suitable for stranded conductors
- No
- Suitable for round conductors
- No
- Suitable for fine strand conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for pull protected connections
- No
- Suitable for insulated varnish
- No
- Reel/roll packaging
- No
- Suitable for flat conductors
- No
- Model
- Mounting box
- Max. conductor cross section
- 6 mm²
- Equipped with
- None
- Shape
- Square
- Mounting method
- Universal
- Mounting in the soil
- No
- Mounting under water
- No
- For tube diameter
- 25 mm
- Inlet from the rear
- No
- Length
- 114 mm
- Width
- 114 mm
- Depth
- 57 mm
- Diameter
- 114 mm
- Connectable
- No
- Number of inlets
- 7
- Type of housing feed-through
- Seal membrane
- Material
- Plastic
- Halogen free
- Yes
- Colour
- White
- Degree of protection (IP)
- IP66
- Transparent cover
- No
- Cover attachment
- Snapped on
- Castable
- No
- Casting compound included
- No
- Sealable
- No
- Rated insulation voltage Ui
- 500 V
- Circuit integrity
- None
- With screening
- Yes
- Weatherproof
- No
- Operating temperature
- 0–650 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4012195286660
- SAP 1000064561
- Code 8901050
Product Documentation
Document preview: Junction BOX T60-WHITE 114X114X57 (2007525) — Specification sheet
More from OBO Bettermann
OBO Bettermann
Junction BOX T160-WHITE190X150X77
2007541
OBO Bettermann
INST.BOX Single STD Materiell
6288532
OBO Bettermann
5099617 OBO Module V20-C/0-500V
V20-C 0-550
OBO Bettermann
Signa 80 Cover pure white 2M
6132736
OBO Bettermann
Plug-In Module V20 C/0-IT 385 V
V20-C 0-385
No image
OBO Bettermann
Signa 70/130 pure white 2M
6132726
OBO Bettermann
NULL-AND EARTH KL.60/S12 Yellowgreen
2054094
OBO Bettermann

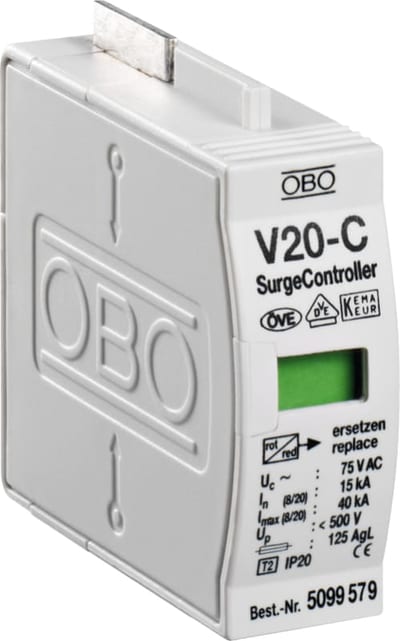

V 20-C 0 75 V (5099579)
