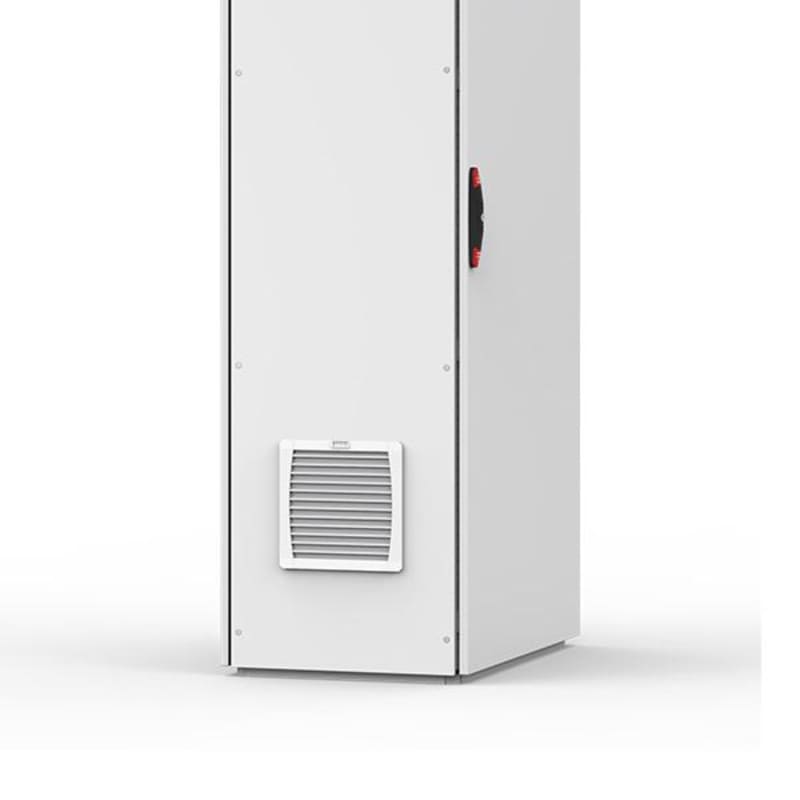

nVent HOFFMAN EF300R5 Filter Fan Air flow 223 M3/h, 230V, 50/60Hz, IP54
Pricing
Request a quote
We reply within 24 hours
Product Description
nVent HOFFMAN EF300R5 — Filter Fan Air flow 223 m3/h, 230V, 50/60HZ, IP54. Filter fan for forced ventilation.
Technical Specifications
- Manufacturer part number (MPN)
- EF300R5
- EAN / GTIN
- 8713574132580
- Sales unit
- pcs
- Air flow
- 223 m³/h
- EL-number (NO)
- 4913282
- Aiflow volume, without filter
- 223/247m³/h
- Airflow volume, with filter
- 201/223m³/h
- Height
- 252 mm (9.92 in)
- Width
- 252 mm (9.92 in)
- Depth
- 103 mm (4.04 in)
- Cutout size
- 8.78 x 8.78in / 223 x 223mm
- Voltage ac
- 230 V
- Protection rating
- IP54; NEMA Type 12
- Material
- Thermoplastic
- Finish
- Smooth
- Color
- Light Gray
- Color code
- RAL 7035
- Nominal current
- 0.32/0.26A
- Connection type
- Spring Type
- Noise level
- 42dB(A)
- Weight
- 1.9 kg (4.19 lb)
- Net weight
- 1.93 kg
- UPC
- 783510474836
- Standard packaging quantity
- 1
- Packing quantity
- 1
- Mounting method
- Snap mounting
- Colour
- Grey
- RAL-number
- 7.04
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With filter
- Yes
- Rated power
- 45 W
- Roof ventilator
- No
- Built as slide-in ventilator
- Yes
- Volume flow, freeblowing
- 256 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 207–253 V
- Operating voltage DC
- 207–253 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 8713574132580
- SAP 1000317297
- Code 81014507
Product Documentation
More from nVent HOFFMAN
nVent HOFFMAN
nVent HOFFMAN ASR0403015-316 316 Stainless Wall-Mounted Enclosure 400×300×150 mm IP66
nVent HOFFMAN
nVent HOFFMAN MPCS062 Desk console, 250X600X985, Combinable enclosure, no MP, Stainless 304, IP66
nVent HOFFMAN
nVent HOFFMAN EKDS20164 304 Stainless Floor-Standing Enclosure 2000×1600×400 mm IP55
nVent HOFFMAN
nVent HOFFMAN S1MFEC Syspend 180-Max Flange Elbow Coupling, 5.42X7.68X4.93, Black, Aluminum
nVent HOFFMAN
nVent HOFFMAN RFU7013R5 Roof fan Air flow 700 M3/h, 115V, IP33
nVent HOFFMAN
nVent HOFFMAN AGC02 Gland plate combining gaskets, AGC, 10X340X126MM, Polyethylene Foam
nVent HOFFMAN
nVent HOFFMAN EFAE500-700R5 Exhaust filter, IP54
nVent HOFFMAN
nVent HOFFMAN MAS0605030PER5 Steel Wall-Mounted Enclosure 600×500×300 mm IP66
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EF300R5?
- EF300R5 can be ordered from cballast.com as a nVent HOFFMAN catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this nVent HOFFMAN product?
- The manufacturer part number is EF300R5.
- What is the HS code for EF300R5?
- The customs tariff (HS) code for EF300R5 is 8538.90.
- Who manufactures EF300R5?
- EF300R5 is a nVent HOFFMAN product in the Enclosures range.
- Is a datasheet available for EF300R5?
- Yes — the EF300R5 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EF300R5?
- The minimum order quantity is 1.
- Is EF300R5 available?
- Yes — EF300R5 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
