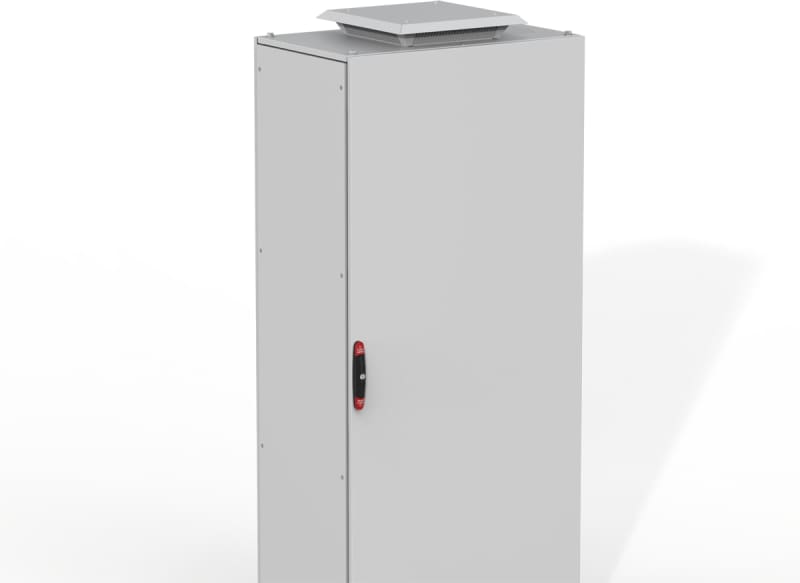

nVent HOFFMAN RFU7013R5 Roof fan Air flow 700 M3/h, 115V, IP33
Pricing
Request a quote
We reply within 24 hours
Product Description
nVent HOFFMAN RFU7013R5 — Roof fan Air flow 700 m3/h, 115V, IP33. This roof filter fan is easily mounted with a click-in feature. Component failure and downtime is eliminated.
Technical Specifications
- Manufacturer part number (MPN)
- RFU7013R5
- EAN / GTIN
- 8713574161757
- Sales unit
- pcs
- Air flow
- 700 m³/h
- EL-number (NO)
- 4913394
- Free airflow
- 700*m³/h
- Height
- 148 mm (5.83 in)
- Width
- 470 mm (18.5 in)
- Depth
- 470 mm (18.5 in)
- Cutout size
- 11.46 x 11.46in / 291 x 291mm
- Nominal voltage
- 115 V
- Protection rating
- IP33; IP54
- Material
- Mild Steel
- Finish
- Powder Coated
- Color
- Light Gray
- Color code
- RAL 7035
- Frequency
- 50/60 HzHz
- Connection type
- Terminal Strip
- Weight
- 4.56 kg (10.05 lb)
- UPC
- 783510527044
- Standard packaging quantity
- 1
- Packing quantity
- 1
- Mounting method
- Snap mounting
- Colour
- Grey
- RAL-number
- 7.04
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP33
- With filter
- No
- Rated power
- 90 W
- Roof ventilator
- Yes
- Built as slide-in ventilator
- Yes
- Volume flow, freeblowing
- 700 m³/h
- Air circulator
- No
- Suitable for wall built-in
- No
- Operating voltage AC 60 Hz
- 207–253 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.90
Cross References
- EAN 8713574161757
- SAP 1000350125
- Code 81290119
Product Documentation
