Norlys

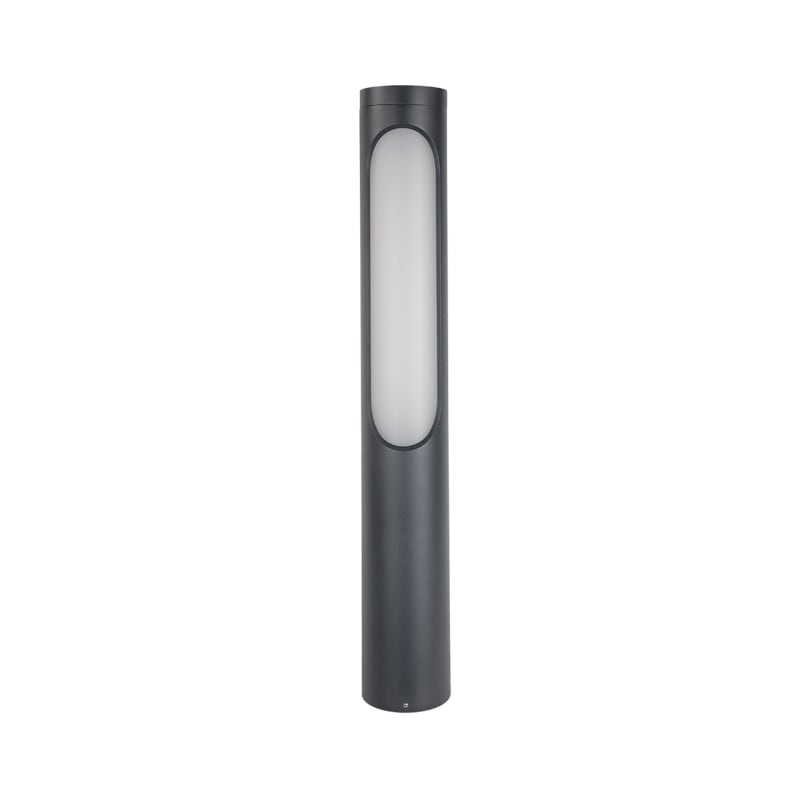

KISA 5182 Graphite (5182gr)
Part number5182GREAN / GTIN7042895182082HS code9405.40
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Norlys 5182GR KISA BOLLARD 5182 GRAPHITE LED 3000K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 5182GR
- EAN / GTIN
- 7042895182082
- Sales unit
- pcs
- Protection class according to IEC 61140
- I
- Width
- 120 mm
- Conductor cross section
- 4 mm²
- With base plate
- Yes
- Housing colour
- Anthracite
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Suitable for lamp power
- 14.1 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Diameter
- 120 mm
- With light sensor
- No
- Number of poles
- 5
- Length
- 120 mm
- Height/depth
- 850 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Indirect
- Light distribution
- Asymmetric
- Material cover
- Plastic, transparent
- Impact strength
- IK08
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Colour temperature
- 3000 K
- Max. system power
- 14.1 W
- Rated luminous flux according to IEC 62722-2-1
- 1185 lm
- Colour of light
- White
- IFTTT support available
- No
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 70000 h
- Luminaire efficacy
- 84 lm/W
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Exchangeable control gear
- Yes
- Power factor
- 0.99
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 9405.40
Cross References
- EAN 7042895182082
- SAP 1200580355
- Code 82951448
Product Documentation
Document preview: KISA 5182 Graphite (5182gr) — Specification sheet
