Norlys

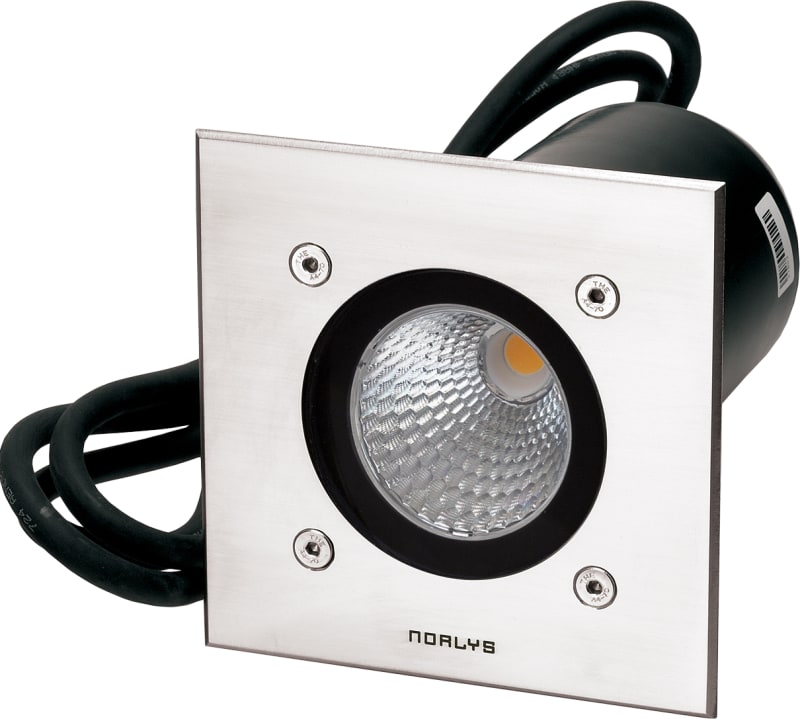

RENA 1762 4W 3000K (1762ST)
Part number1762STEAN / GTIN7042891762059HS code9405.40
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Norlys 1762ST L70>50 000h 318lm 79,5lm/W 3000K SDCM3 Dimmable IP68.
Technical Specifications
- Manufacturer part number (MPN)
- 1762ST
- EAN / GTIN
- 7042891762059
- Sales unit
- pcs
- Power
- 4 W
- Colour temperature
- 3000 K
- Protection class according to IEC 61140
- I
- Width
- 130 mm
- Outer diameter
- 130 mm
- Conductor cross section
- 2.5 mm²
- Housing colour
- Aluminium
- Dimmable
- Yes
- Voltage type
- AC
- Suitable for lamp power
- 4 W
- Type of control gear
- Not required
- Adjustable
- No
- Colour rendering index CRI
- 90-100
- Built-in width
- 116 mm
- Built-in diameter
- 85 mm
- Number of poles
- 3
- Length
- 157 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- Built-in length
- 155 mm
- Electrical connection with connector system
- No
- Light distribution
- Symmetric
- Material cover
- Glass transparent
- Impact strength
- IK09
- Over rollable
- Yes
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP68
- With light source
- Yes
- Max. load
- 2000 kg
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Beam angle
- 21-40° - Medium beam
- Max. system power
- 4 W
- Rated luminous flux according to IEC 62722-2-1
- 318 lm
- Colour of light
- White
- IFTTT support available
- No
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- No
- Light distributor
- None
- Luminaire efficacy
- 79.5 lm/W
- Dimming DSI
- No
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A+
- Lowest energy efficiency class of the exchangeable lamp
- A+
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Colour of light adjustable
- No
- Power factor
- 0.99
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 9405.40
Cross References
- EAN 7042891762059
- SAP 1200632593
- Code 83051330
Product Documentation
Document preview: RENA 1762 4W 3000K (1762ST) — Specification sheet
