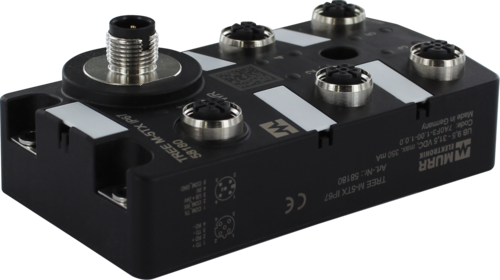

TREE M-5TX IP67 Lite managed Switch 5 Ports 5X10/100BT IP67

Murrelektronik 58183 — TREE M-5TX IP67 Lite managed Switch 5 Ports 5x10/100BT IP67. IP67 5 port managed switch 5× M12 (female), D-coded Supply PIN 1/3

Manufacturer part number (MPN)

58183

Model designation

TREE M-5TX

EAN / GTIN

4048879718301

HS code

8517.62

EU customs tariff number

85176200

US customs tariff number

8517620090

Weight

0.260 kg

Country of origin

DE

Sales unit

pcs

Electrical data | Supply - Operating voltage DC min.

9.5 V

Electrical data | Supply - Operating voltage DC max.

31.5 V

Electrical data | Supply - Current consumption

130 mA

Electrical data | Supply - Current consumption min.

97.5 mA

Electrical data | Supply - Current consumption max.

162.5 mA

Industrial Communication - Data transmission rate max.

100 Mbit/s

Ethernet functionality - LLDP frames

forwarding

Ethernet functionality - Switch type

managed

Industrial communication | Ethernet functionality - duplex

Full duplex

Ethernet functionality - Auto-negotiation

Yes

Ethernet functionality - Auto-crossover

Yes

Ethernet functionality - Ring topology

STP, RSTP

Industrial communication | IIoT functions - Webserver

HTTP, HTTPS

IIoT functions - Remote maintenance

Open VPN client

Switch Management - VLAN managed (IEEE 802.1Q)

No

Switch Management - RSTP (IEEE 802.1D-2004, IEC 62439-1)

Default on

Simple Network Management Protocol (SNMP)

v1, v3 (default active), v2c

Switch Management - Time synchronization

NTP client

Switch Management - Addressing

SSH-Befehlszeile, DCP, BOOTP/DHCP client

Diagnostics - Alarm contact

No

Diagnostics - Diagnostic

No voltage

Diagnostics - LED display

Ethernet connection/data traffic

Diagnostics - RMON

Yes

Diagnostics - Port mirroring

1:1

Diagnostics - Syslog

Yes

Diagnostics - SNMP traps

Yes

Electrical - Degree of protection (EN IEC 60529)

IP67

Electrical - Invers-polarity protection

Yes

Device protection | Electrical - Over voltage protection

Yes

Mechanical data | Material data - housing

Plastic

Mechanical data | Material data - Color housing

black

Mechanical data | Mounting data - Height

105 mm

Mechanical data | Mounting data - Width

60 mm

Mechanical data | Mounting data - Depth

40 mm

Mounting data - Suitable for mounting type

3 hole screw mounting

Climatic - Operating temperature min.

0 °C

Climatic - Operating temperature max.

60 °C

Climatic - Ambient temperature (storage, transport)

-40 °C … 85 °C

Connection types - Connection type 1

4, 5

Connection type 1 - Family construction form

M12

Connection type 1 - No. of poles

4

Connection type 1 - Coding

D

Connection type 1 - Gender

female

Connection type 1 - Color contact carrier

black

Connection type 1 - Mounting method

inserted, screwed

Connection type 1 - Tightening torque

0.6 Nm

Connection type 1 - PIN 1

TD +

Connection type 1 - PIN 2

RD +

Connection type 1 - PIN 3

TD -

Connection type 1 - PIN 4

RD -

Connection type 1 - PIN 5

n.c.

Connection type 2 - Family construction form

M12

Connection type 2 - No. of poles

5

Connection type 2 - Coding

A

Connection type 2 - Gender

male

Connection type 2 - Color contact carrier

black

Connection type 2 - PIN 1

24 V DC (UB 1)

Connection type 2 - PIN 2

RD

Connection type 2 - PIN 3

0 V

Connection type 2 - PIN 4

TD

Connection type 2 - PIN 5

n.c.

ETIM-5.0

EC000734

ETIM-6.0

EC000734

ETIM-7.0

EC000734

ETIM-8.0

EC000734

ETIM-9.0

EC000734

ETIM-10.0

EC000734

Packaging unit

1

ECLASS 14.0

19170401

HS Code

8517.62

• EAN 4048879718301
• SAP 1200294692
• Code 82269249
