Xenterra 8TX unmanaged Switch 8 Port 100MBIT
Pricing
Request a quote
We reply within 24 hours
Product Description

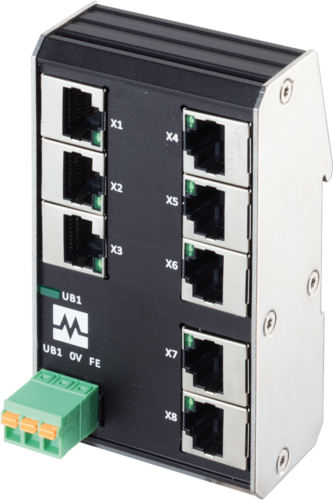

Murrelektronik 58902 — Xenterra 8TX unmanaged Switch 8 Port 100Mbit. 8 port unmanaged switch DIN-rail mountable TH35 (EN 60715)
Technical Specifications
- Manufacturer part number (MPN)
- 58902
- Model designation
- Xenterra 8TX
- EAN / GTIN
- 4048879830294
- HS code
- 8517.62
- EU customs tariff number
- 85176200
- US customs tariff number
- 8517620090
- Weight
- 0.255 kg
- Country of origin
- DE
- Sales unit
- pcs
- Electrical data | Supply - Operating voltage AC min.
- 8 V
- Electrical data | Supply - Operating voltage AC max.
- 28 V
- Electrical data | Supply - Operating voltage DC min.
- 9 V
- Electrical data | Supply - Operating voltage DC max.
- 36 V
- Industrial Communication - Data transmission rate max.
- 100 Mbit/s
- Ethernet functionality - VLAN unmanaged (IEEE 802.1Q)
- Yes
- Ethernet functionality - Switch type
- unmanaged
- Industrial communication | Ethernet functionality - duplex
- Full duplex
- Ethernet functionality - Auto-negotiation
- Yes
- Ethernet functionality - Auto-crossover
- Yes
- Diagnostics - Alarm contact
- No
- Diagnostics - Diagnostic
- No voltage
- Diagnostics - LED display
- Ethernet connection/data traffic
- Electrical - Degree of protection (EN IEC 60529)
- IP20
- Mechanical data | Material data - housing
- Metal
- Mechanical data | Material data - Color housing
- black
- Mechanical data | Mounting data - Height
- 105 mm
- Mechanical data | Mounting data - Width
- 58 mm
- Mechanical data | Mounting data - Depth
- 37.8 mm
- Mechanical data | Mounting data - Mounting method
- geschnappt
- Mounting data - Suitable for mounting type
- Mounting rail TH35, (EN 60715)
- Climatic - Operating temperature min.
- -40 °C
- Climatic - Operating temperature max.
- 70 °C
- Climatic - Ambient temperature (storage, transport)
- -40 °C … 85 °C
- Connection types - Connection type 1
- 8
- Connection type 1 - Family construction form
- RJ45
- Connection type 1 - No. of poles
- 8
- Connection type 1 - Gender
- female
- Connection type 1 - Color contact carrier
- black
- Connection type 1 - PIN 1
- TD +
- Connection type 1 - PIN 2
- TD -
- Connection type 1 - PIN 3
- RD +
- Connection type 1 - PIN 4
- n.c.
- Connection type 1 - PIN 5
- n.c.
- Connection type 1 - PIN 6
- RD -
- Connection type 1 - PIN 7
- n.c.
- Connection type 1 - PIN 8
- n.c.
- ETIM-5.0
- EC000734
- ETIM-6.0
- EC000734
- ETIM-7.0
- EC000734
- ETIM-8.0
- EC000734
- ETIM-9.0
- EC000734
- ETIM-10.0
- EC000734
- Packaging unit
- 1
- ECLASS 14.0
- 19170402
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4048879830294
- SAP 1200454677
- Code 82510839
Product Documentation
