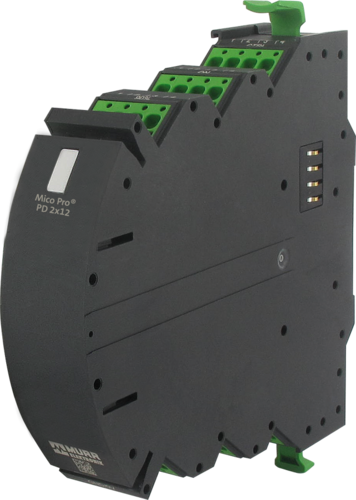

Mico Pro Potential distributor 2 x 12 Multipliing one channel 11-Times, max 20 A

Murrelektronik 9000-41000-0000212 — Mico Pro Potential distributor 2 x 12 Multipliing one channel 11-times, max 20 A. Pro PD 2x12 Mico Pro® PD 2× 12 1 channel (× 11) Build your own Mico Pro® online: START

Manufacturer part number (MPN)

9000-41000-0000212

Model designation

Mico

EAN / GTIN

4048879558709

HS code

8536.30

EU customs tariff number

85363030

US customs tariff number

8536308000

Weight

0.136 kg

Country of origin

CZ

Sales unit

pcs

Electrical data | Supply - Total current max.

20 A

Electrical data | Input - Input voltage DC min.

9 V

Electrical data | Input - Input voltage DC max.

30 V

Electrical data | Input - Nominal input voltage DC

12 V … 24 V

Electrical data | Input - Total current bridge set max.

40 A

Installation - Connection cross-section static min.

0.2 mm²

Installation - Connection cross section static max.

2.5 mm²

Installation - Connection cross-section dynamic min.

0.2 mm²

Installation - Connection cross section dynamic max.

2.5 mm²

Installation - AWG number static min.

14

Installation - AWG number static max.

24

Installation - AWG number dynamic min.

14

Installation - AWG number dynamic max.

24

Installation | Connection - Connection

Bridge system

Electrical - Degree of protection (EN IEC 60529)

IP20

Mechanical data | Mounting data - Height

130 mm

Mechanical data | Mounting data - Width

24 mm

Mechanical data | Mounting data - Depth

114 mm

Mechanical data | Mounting data - Mounting method

geschnappt

Mounting data - Suitable for mounting type

Mounting rail TH35, (EN 60715)

Climatic - Operating temperature min.

-25 °C

Climatic - Operating temperature max.

55 °C

Climatic - Ambient temperature (storage, transport)

-40 °C … 80 °C

Connection type 1 - Family construction form

Bridging Contact

Connection type 1 - No. of poles

1

Connection type 1 - Gender

female

Connection type 1 - Color contact carrier

black

Connection type 1 - PIN 1

0 V

Connection type 2 - Family construction form

Bridging Contact

Connection type 2 - No. of poles

4

Connection type 2 - Gender

female

Connection type 2 - Color contact carrier

black

Connection type 2 - PIN 1

On

Connection type 2 - PIN 2

Ctrl

Connection type 2 - PIN 3

Alarm

Connection type 2 - PIN 4

0.9

Connection type 3 - Family construction form

Bridging Contact

Connection type 3 - No. of poles

4

Connection type 3 - Gender

male

Connection type 3 - Color contact carrier

black

Connection type 3 - PIN 1

On

Connection type 3 - PIN 2

Ctrl

Connection type 3 - PIN 3

Alarm

Connection type 3 - PIN 4

0.9

Connection type 4 - Family construction form

terminal

Connection type 4 - No. of poles

4

Connection type 4 - Gender

female

Connection type 4 - Color contact carrier

green

Connection type 4 - Connection

Spring clamp terminals FK

Connection type 4 - PIN 1

11 U +

Connection type 4 - PIN 2

11 0 V

Connection type 4 - PIN 3

12 U +

Connection type 4 - PIN 4

12 0 V

Connection type 5 - Family construction form

terminal

Connection type 5 - No. of poles

4

Connection type 5 - Gender

female

Connection type 5 - Color contact carrier

green

Connection type 5 - Connection

Spring clamp terminals FK

Connection type 5 - PIN 1

9 U +

Connection type 5 - PIN 2

9 0 V

Connection type 5 - PIN 3

10 U +

Connection type 5 - PIN 4

10 0 V

Connection type 6 - Family construction form

terminal

Connection type 6 - No. of poles

4

Connection type 6 - Gender

female

Connection type 6 - Color contact carrier

green

Connection type 6 - Connection

Spring clamp terminals FK

Connection type 6 - PIN 1

7 U +

Connection type 6 - PIN 2

7 0 V

Connection type 6 - PIN 3

8 U +

Connection type 6 - PIN 4

8 0 V

Connection type 7 - Family construction form

terminal

Connection type 7 - No. of poles

4

Connection type 7 - Gender

female

Connection type 7 - Color contact carrier

green

Connection type 7 - Connection

Spring clamp terminals FK

Connection type 7 - PIN 1

5 U +

Connection type 7 - PIN 2

5 0 V

Connection type 7 - PIN 3

6 U +

Connection type 7 - PIN 4

6 0 V

Connection type 8 - Family construction form

terminal

Connection type 8 - No. of poles

4

Connection type 8 - Gender

female

Connection type 8 - Color contact carrier

green

Connection type 8 - Connection

Spring clamp terminals FK

Connection type 8 - PIN 1

3 U +

Connection type 8 - PIN 2

3 0 V

Connection type 8 - PIN 3

4 U +

Connection type 8 - PIN 4

4 0 V

ETIM-5.0

EC000489

ETIM-6.0

EC000489

ETIM-7.0

EC000489

ETIM-8.0

EC000489

ETIM-9.0

EC000489

ETIM-10.0

EC000489

Packaging unit

1

ECLASS 14.0

27371892

HS Code

8536.30

• EAN 4048879558709
• SAP 1200010967
• Code 81381403
