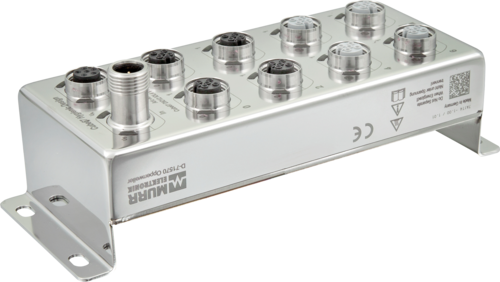

CUBE67+ Hygienic Design I/O EXTENSION MODULE 12 multif. channels + 4 IO-Link master V1.1

Murrelektronik 5676660 — CUBE67+ Hygienic Design I/O EXTENSION MODULE 12 multif. channels + 4 IO-Link master V1.1. DIO12 IOL4 V1.1 E 8xM12 HD Expansion module DIO12 IOL4 (E) - 8× M12 IO-Link Master V1.1.2 Digital inputs/outputs (multifunctional) Hygienic Design Stainless steel, polished Cube67+ modules can only be operated on Cube67+, EtherNet/IP, PROFIBUS + PROFINET bus nodes. Housing fully potted. Connection cable: F&B, F&B Pro, Steel

Manufacturer part number (MPN)

5676660

Model designation

Cube67+

EAN / GTIN

4048879697316

HS code

8538.90

EU customs tariff number

85389099

US customs tariff number

8538908180

Weight

0.380 kg

Country of origin

DE

Sales unit

pcs

Electrical data | Supply - Norm operating voltage

IEC/EN 61131-2

Electrical data | Supply - Operating voltage US DC

24 V

Electrical data | Supply - Total current US max.

4 A

Electrical data | Supply - Operating voltage UA DC

24 V

Electrical data | Supply - Total current UA max.

4 A

Electrical data | Supply - Current consumption max.

100 mA

Electrical data | Input - Sensor current US per input max.

0.2 A

Input - Sensor current US per IO-Link port max.

0.7 A

Electrical data | Input - filter time

1 ms

Electrical data | Input - Type input

for 3-wire sensors or mechanical switches, PNP

Electrical data | Output - Output current per pin max.

1.6 A

Electrical data | Output - Overload resistant

Yes

Electrical data | Output - Short-circuit protected

Yes

Electrical data | Output - Lamp load

30 W

Industrial communication | IO-Link - type

4× Master

Industrial communication | IO-Link - Port Class

A, B

Industrial communication | IO-Link - revision ID

V1.1.2

Industrial communication | IO-Link - transmission rate

COM1, COM2, COM3

IO-Link - process data length input

32 byte

IO-Link - process data length output

32 byte

IO-Link - Automatic baudrate detection

automatic

Diagnostics - Actuator warning

per channel via LED and BUS

Diagnostics - Short circuit diagnosis

Yes

Diagnostics - Overload diagnosis

Yes

Diagnostics - Diagnostic via BUS

per module and channel

Diagnostics - Diagnostic via LED

per module and channel

Diagnostics - LED display

Ethernet connection/data traffic

Diagnostics - IO-Link events

Undervoltage supply, No voltage

Electrical - Degree of protection (ISO 20653 -2013)

IP69K

Mechanical data | Mounting data - Height

54 mm

Mechanical data | Mounting data - Width

60 mm

Mechanical data | Mounting data - Depth

152 mm

Mounting data - Suitable for mounting type

4 hole screw mounting

Climatic - Operating temperature min.

0 °C

Climatic - Operating temperature max.

55 °C

Climatic - Ambient temperature (storage, transport)

-20 °C … 75 °C

Connection types - Connection type 1

Bus In

Connection types - Connection type 2

Bus Out

Connection types - Connection type 3

DIO

Connection types - Connection type 4

DIO

Connection type 1 - Family construction form

M12

Connection type 1 - No. of poles

6

Connection type 1 - Coding

A

Connection type 1 - Gender

male

Connection type 1 - Color contact carrier

black

Connection type 1 - PIN 1

24 V DC (UA)

Connection type 1 - PIN 2

24 V DC (US)

Connection type 1 - PIN 3

0 V

Connection type 1 - PIN 4

Bus internal

Connection type 1 - PIN 5

Bus internal

Connection type 1 - PIN 6

0 V

Connection type 2 - Family construction form

M12

Connection type 2 - No. of poles

6

Connection type 2 - Coding

A

Connection type 2 - Gender

female

Connection type 2 - Color contact carrier

black

Connection type 2 - PIN 1

24 V DC (UA)

Connection type 2 - PIN 2

24 V DC (US)

Connection type 2 - PIN 3

0 V

Connection type 2 - PIN 4

Bus internal

Connection type 2 - PIN 5

Bus internal

Connection type 2 - PIN 6

0 V

Connection type 3 - Family construction form

M12

Connection type 3 - No. of poles

5

Connection type 3 - Coding

A

Connection type 3 - Gender

female

Connection type 3 - Color contact carrier

gray

Connection type 3 - PIN 1

24 V DC (US)

Connection type 3 - PIN 2

DI / DO / Diag

Connection type 3 - PIN 3

0 V

Connection type 3 - PIN 4

IO-Link

Connection type 3 - PIN 5

0 V

Connection type 4 - Family construction form

M12

Connection type 4 - No. of poles

5

Connection type 4 - Coding

A

Connection type 4 - Gender

male

Connection type 4 - Color contact carrier

black

Connection type 4 - PIN 1

24 V DC (US)

Connection type 4 - PIN 2

DI / DO 0.x

Connection type 4 - PIN 3

0 V

Connection type 4 - PIN 4

DI / DO 1.x

Connection type 4 - PIN 5

PE

Compatible with -

56521; 56526; 56535

ETIM-5.0

EC001855

ETIM-6.0

EC001855

ETIM-7.0

EC001855

ETIM-8.0

EC001855

ETIM-9.0

EC001855

ETIM-10.0

EC001855

Packaging unit

1

ECLASS 14.0

27242604

HS Code

8538.90
