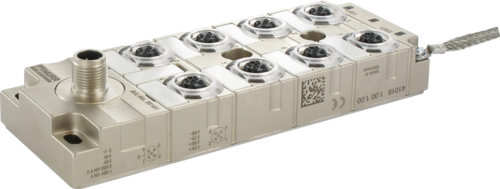

Tree 8TX IP67 Metal - Unmanaged Switch - 8XM12
Pricing
Request a quote
We reply within 24 hours
Product Description
Murrelektronik 58161 — Tree 8TX IP67 Metal - Unmanaged Switch - 8xM12. IP67 8xM12 8 port unmanaged switch
Technical Specifications
- Manufacturer part number (MPN)
- 58161
- Model designation
- TREE 8TX
- EAN / GTIN
- 4048879536509
- HS code
- 8517.62
- EU customs tariff number
- 85176200
- US customs tariff number
- 8517620090
- Weight
- 0.490 kg
- Country of origin
- DE
- Sales unit
- pcs
- Electrical data | Supply - Operating voltage DC min.
- 9 V
- Electrical data | Supply - Operating voltage DC max.
- 30 V
- Industrial Communication - Data transmission rate max.
- 100 Mbit/s
- Ethernet functionality - VLAN unmanaged (IEEE 802.1Q)
- Yes
- Ethernet functionality - Switch type
- unmanaged
- Industrial communication | Ethernet functionality - duplex
- Full duplex
- Ethernet functionality - Auto-negotiation
- Yes
- Ethernet functionality - Auto-crossover
- Yes
- Diagnostics - Alarm contact
- No
- Diagnostics - Diagnostic
- No voltage
- Diagnostics - LED display
- Ethernet connection/data traffic
- Electrical - Degree of protection (EN IEC 60529)
- IP67
- Mechanical data | Material data - housing
- Zinc die-casting
- Mechanical data | Material data - Coating housing
- Nickeled
- Mechanical data | Mounting data - Height
- 145 mm
- Mechanical data | Mounting data - Width
- 55 mm
- Mechanical data | Mounting data - Depth
- 31 mm
- Mounting data - Suitable for mounting type
- 4 hole screw mounting
- Climatic - Operating temperature min.
- -25 °C
- Climatic - Operating temperature max.
- 60 °C
- Climatic - Ambient temperature (storage, transport)
- -40 °C … 80 °C
- Connection types - Connection type 1
- 4-7
- Connection types - Connection type 2
- Power
- Connection type 1 - Family construction form
- M12
- Connection type 1 - No. of poles
- 4
- Connection type 1 - Coding
- D
- Connection type 1 - Gender
- female
- Connection type 1 - Color contact carrier
- black
- Connection type 1 - Mounting method
- inserted, screwed
- Connection type 1 - Tightening torque
- 0.6 Nm
- Connection type 1 - PIN 1
- TD +
- Connection type 1 - PIN 2
- RD +
- Connection type 1 - PIN 3
- TD -
- Connection type 1 - PIN 4
- RD -
- Connection type 1 - PIN 5
- n.c.
- Connection type 2 - Family construction form
- M12
- Connection type 2 - No. of poles
- 5
- Connection type 2 - Coding
- A
- Connection type 2 - Gender
- male
- Connection type 2 - Color contact carrier
- black
- Connection type 2 - PIN 1
- 24 V DC (UB 1)
- Connection type 2 - PIN 2
- 24 V DC (UB 2)
- Connection type 2 - PIN 3
- 0 V
- Connection type 2 - PIN 4
- 0 V
- Connection type 2 - PIN 5
- PE
- ETIM-5.0
- EC000734
- ETIM-6.0
- EC000734
- ETIM-7.0
- EC000734
- ETIM-8.0
- EC000734
- ETIM-9.0
- EC000734
- ETIM-10.0
- EC000734
- Packaging unit
- 1
- ECLASS 14.0
- 19170402
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4048879536509
- SAP 1200294689
- Code 82269257
