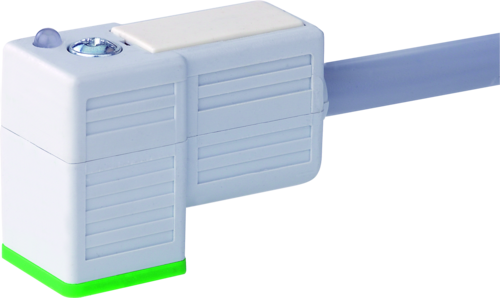

MSUD valve plug C-8MM with cable F&B PVC 3X0.75 gy 5M

Murrelektronik 7014-80021-2160500 — MSUD valve plug C-8mm with cable F&B PVC 3x0.75 gy 5m. MSUD Form C (8 mm) 24 V AC ±20% / DC ±25% LED and suppression Screw, Stainless Steel 1.4404 (V4A)

Manufacturer part number (MPN)

7014-80021-2160500

Model designation

MSUDS-CA1Z-216_5.0-S14

EAN / GTIN

4048879108089

HS code

8544.42

EU customs tariff number

85444290

US customs tariff number

8544429090

Weight

0.308 kg

Country of origin

CZ

Sales unit

pcs

Cable length

5.00 m

Side 1 - Family construction form

Valve connector form C

Side 1 - No. of poles

4

Side 1 - Mounting method

pluggable, screwed

Side 1 - Threaded hole

M3x31

Side 1 - Tightening torque

0.4 Nm

Side 1 - Material contact

Bronze

Side 1 - Coating contact

silver-plated

Side 1 - Degree of protection (EN IEC 60529)

IP67, IP69K, IP68, IP65

Side 2 - Stripping length (jacket)

50 mm

Electrical data - Drop-out delay time max.

20 ms

Electrical data | Supply - Operating voltage AC

24 V

Electrical data | Supply - Operating voltage AC min.

19.2 V

Electrical data | Supply - Operating voltage AC max.

28.8 V

Electrical data | Supply - Operating voltage DC

24 V

Electrical data | Supply - Operating voltage DC min.

18 V

Electrical data | Supply - Operating voltage DC max.

30 V

Supply - Current operating per contact max.

4 A

Electrical data | Supply - Cut-off peak voltage max.

55 V

Electrical data | Supply - Current consumption max.

12 mA

Diagnostics - Status indication LED

yellow

Electrical - Degree of protection (EN IEC 60529)

IP67, IP69K, IP68, IP65

Electrical - Additional condition protection degree

inserted, screwed

Device protection | Electrical - Pollution Degree

3

Device protection | Electrical - Rated surge voltage

0.8 kV

Electrical - Material group (IEC 60664-1)

I

Mechanical data - Contour for corrugated hose

without

Mechanical data | Material data - Color housing

gray

Mechanical data | Material data - Locking material

Stainless steel 1.4404 (V4A)

Climatic - Operating temperature min.

-25 °C

Climatic - Operating temperature max.

85 °C

Climatic - Additional condition temperature range

depending on cable quality

Important installation notes - Note on bending radius

Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Important installation notes - Note on strain relief

Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

General data | Cable - Cable identification

216

General data | Cable - Cable Type

1

General data | Cable - Cable weigth

58 g/m

Structure | Cable - Stranding

1 × 3 wires stranded

Structure | Cable - Wire arrangement

BK 1, BK 2, GNYE

Wire data | Cable - Material wire insulation

PVC

Wire data | Cable - Amount wires

3

Wire data | Cable - Outer diameter insulation

1.8 mm ± 0.1 mm

Wire data | Cable - Conductor crosssection (wire)

0.75 mm²

Wire data | Cable - Material conductor wire

Stranded copper wire, bare

Wire data | Cable - Core construction (wire)

24 × 0.2 mm

Wire data | Cable - Material properties wire insulation

good machinability

Wire data | Cable - Ingredient freeness wire insulation

lead-free, cadmium-free, CFC-free, silicone-free

Jacket data | Cable - Material jacket

PVC

Jacket data | Cable - Outer-diameter (jacket)

5.9 mm ± 5 %

Jacket data | Cable - Jacket Color

gray / RAL 7040

Jacket data | Cable - Freedom from ingredients (jacket)

lead-free, cadmium-free, CFC-free, silicone-free

Jacket data | Cable - Material property (jacket)

good machinability

Electrical data | Cable - Conductor resistance (wire)

26 Ω/km @ 20 °C

Cable - Max. rated voltage (conductor - ground)

300 V

Cable - Max. rated voltage (conductor - conductor)

500 V

Electrical data | Cable - Withstand voltage (wire - wire)

3 kV @ 60 s

Cable - Withstand voltage (wire - jacket)

3 kV @ 60 s

Cable - Current load capacity max. (wire)

12 A

Electrical data | Cable - Current load capacity (standard)

to DIN VDE 0298-4

Temperature range | Cable - Operating temperature (static)

-30 °C … 70 °C

Cable - Operating temperature (dynamic)

-5 °C … 70 °C

Resistances | Cable - Oil resistance

good

Resistances | Cable - Chemical resistance

good

Resistances | Cable - Other resistances

good resistance to gasoline

Resistances | Cable - Notes

application-related testing

Installation | Cable - Bending radius (fixed)

5 × Outer diameter

Installation | Cable - Bending radius (dynamic)

10 × Outer diameter

ETIM-5.0

EC001855

ETIM-6.0

EC001855

ETIM-7.0

EC001855

ETIM-8.0

EC001855

ETIM-9.0

EC001855

ETIM-10.0

EC001855

Packaging unit

1

ECLASS 14.0

27060312

HS Code

8544.42
