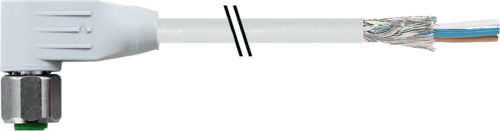

M12 female 90° A-cod. with cable shielded F&B PVC 5X0.34 shielded gy 30M

Murrelektronik 7014-13281-3483000 — M12 female 90° A-cod. with cable shielded F&B PVC 5x0.34 shielded gy 30m. Plug Connectors for Food & Beverage Female 90° M12, 5-pole Shielded A-coded Profile gasket

Manufacturer part number (MPN)

7014-13281-3483000

Model designation

MSDL0-U348_30.0-ZS-S14

EAN / GTIN

4048879574327

HS code

8544.42

EU customs tariff number

85444290

US customs tariff number

8544429090

Weight

1.986 kg

Country of origin

CZ

Sales unit

pcs

Cable length

30.00 m

Side 1 - Family construction form

M12

Side 1 - No. of poles

5

Side 1 - Coding

A

Side 1 - Gender

female

Side 1 - Mounting method

inserted, screwed

Side 1 - Threaded hole

M12 x 1

Side 1 - Tightening torque

0.6 Nm

Side 1 - Width across flats

SW14

Side 1 - Cable outlet

angled

Side 1 - Material contact

Copper alloy

Side 1 - Coating contact

gold plated

Side 1 - Degree of protection (EN IEC 60529)

IP67, IP69K, IP68, IP66K, IP65

Side 2 - Family construction form

free cable end

Side 2 - Stripping length (jacket)

20 mm

Electrical data | Supply - Operating voltage AC max.

60 V

Electrical data | Supply - Operating voltage DC max.

60 V

Supply - Current operating per contact max.

4 A

Diagnostics - Status indication LED

No

Electrical - Degree of protection (EN IEC 60529)

IP67, IP69K, IP68, IP66K, IP65

Electrical - Additional condition protection degree

inserted, screwed

Device protection | Electrical - Pollution Degree

3

Device protection | Electrical - Rated surge voltage

1.5 kV

Electrical - Material group (IEC 60664-1)

I

Mechanical data - Contour for corrugated hose

without

Mechanical data | Material data - Locking material

Stainless steel 1.4404 (V4A)

Mechanical data | Mounting data - Mounting method

inserted, screwed, Shaking protection

Climatic - Operating temperature min.

-30 °C

Climatic - Operating temperature max.

85 °C

Climatic - Additional condition temperature range

depending on cable quality

Important installation notes - Note on bending radius

Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Important installation notes - Note on strain relief

Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity - Product standard

EN IEC 61076-2-101 (M12)

General data | Cable - Cable identification

348

General data | Cable - Cable weigth

65.5 g/m

Structure | Cable - Stranding

1 Wires

Structure | Cable - Stranding factor min.

75 mm

Structure | Cable - Stranding factor max.

75 mm

Structure | Cable - Cable shielding (type)

copper braid, tinned

Structure | Cable - Cable shielding (coverage)

85 %

Structure | Cable - Banding

Foil

Structure | Cable - Filler

Yes

Structure | Cable - Wire arrangement

BN, BK, BU, WH, GNYE

Structure | Cable - Shield

shielded

Wire data | Cable - Material wire insulation

PVC

Wire data | Cable - Amount wires

5

Wire data | Cable - Outer diameter insulation

1.4 mm ± 0.2 mm

Wire data | Cable - Conductor crosssection (wire)

0.34 mm²

Wire data | Cable - Material conductor wire

Stranded copper wire, bare

Wire data | Cable - Core construction (wire)

42 × 0.1 mm

Wire data | Cable - Ingredient freeness wire insulation

lead-free, CFC-free

Jacket data | Cable - Material jacket

PVC

Jacket data | Cable - Outer-diameter (jacket)

5.9 mm ± 5 %

Jacket data | Cable - Jacket Color

gray / RAL 7001

Jacket data | Cable - Freedom from ingredients (jacket)

lead-free, cadmium-free, CFC-free

Jacket data | Cable - Material property (jacket)

good machinability

Shield | Cable - Cable shielding (type)

copper braid, tinned

Shield | Cable - Cable shielding (coverage)

85 %

Electrical data | Cable - Conductor resistance (wire)

57 Ω/km @ 20 °C

Cable - Max. rated voltage (conductor - ground)

300 V

Cable - Max. rated voltage (conductor - conductor)

500 V

Electrical data | Cable - Withstand voltage (wire - wire)

1.5 kV @ 60 s

Cable - Withstand voltage (wire - jacket)

1.5 kV @ 60 s

Cable - Withstand voltage (wire - shield)

1.5 kV @ 60 s

Cable - Current load capacity max. (wire)

4.8 A

Electrical data | Cable - Current load capacity (standard)

to DIN VDE 0298-4

Temperature range | Cable - Operating temperature (static)

-30 °C … 80 °C

Cable - Operating temperature (dynamic)

-5 °C … 70 °C

Installation | Cable - Bending radius (dynamic)

15 × Outer diameter

ETIM-5.0

EC001855

ETIM-6.0

EC001855

ETIM-7.0

EC001855

ETIM-8.0

EC001855

ETIM-9.0

EC001855

ETIM-10.0

EC001855

Packaging unit

1

ECLASS 14.0

27060311

HS Code

8544.42

• EAN 4048879574327
• SAP 1200009088
• Code 8548440
