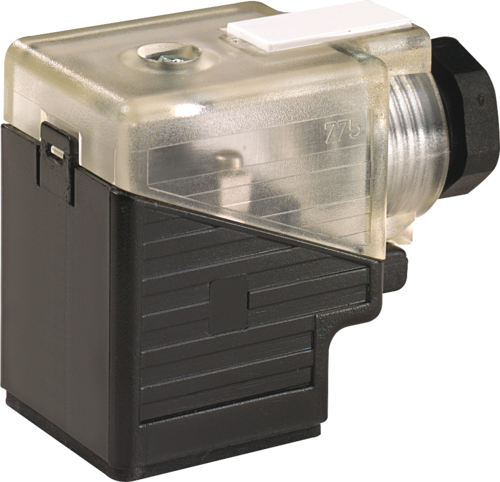

SVS Valve PLUG FORM A 18mm Field-Wireable 0...230V M16X1.5

Murrelektronik 7000-29401-0000000 — SVS VALVE PLUG FORM A 18MM FIELD-WIREABLE 0.230V M16x1.5. Form A (18 mm) for pressure switch 0.230 V AC/DC without components metric

Manufacturer part number (MPN)

7000-29401-0000000

Model designation

MSVS-EB5K-M16

EAN / GTIN

4048879187442

HS code

8536.69

EU customs tariff number

85366990

US customs tariff number

8536694020

Weight

0.040 kg

Country of origin

CN

Sales unit

pcs

Side 1 - Family construction form

Valve connector form A

Side 1 - Mounting method

pluggable, screwed

Side 1 - Degree of protection (EN IEC 60529)

IP65

Electrical data | Supply - Operating voltage AC max.

230 V

Electrical data | Supply - Operating voltage DC max.

230 V

Supply - Current operating per contact max.

10 A

Installation - Connection cross section max.

1.5 mm²

Installation | Connection - Tightening torque

0.4 Nm

Installation | Connection - Mounting set

M16 x 1.5

Installation | Pin assignment - No. of poles

3 + PE

Electrical - Additional condition protection degree

inserted, screwed

Mechanical data | Mounting data - Fastening screw

M3x31

Mechanical data | Mounting data - Clamping range min.

5 mm

Mechanical data | Mounting data - Clamping range max.

10 mm

Climatic - Operating temperature min.

-20 °C

Climatic - Operating temperature max.

60 °C

Important installation notes - Note on bending radius

Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Important installation notes - Note on strain relief

Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

ETIM-9.0

EC002635

ETIM-10.0

EC002635

Packaging unit

1

HS Code

8536.69

• EAN 4048879187442
• SAP 1000434671
• Code 846947
