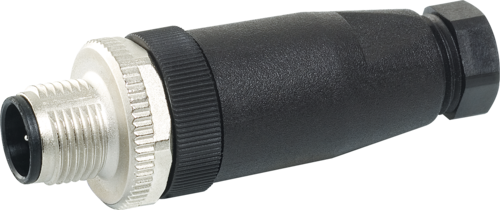

M12 male 0° A-cod. screw terminal 5-POL., max. 0,75mm², 4 - 6mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Murrelektronik 7000-12721-0000000 — M12 male 0° A-cod. screw terminal 5-pol., max. 0,75mm², 4 - 6mm. Male straight M12, 5-pole Screw terminals Sealing range (cable Ø): 4.6 mm
Technical Specifications
- Manufacturer part number (MPN)
- 7000-12721-0000000
- Model designation
- MSA-U7
- EAN / GTIN
- 4048879201650
- HS code
- 8536.69
- EU customs tariff number
- 85366990
- US customs tariff number
- 8536694020
- Weight
- 0.024 kg
- Country of origin
- DE
- Sales unit
- pcs
- Side 1 - Family construction form
- M12
- Side 1 - No. of poles
- 5
- Side 1 - Coding
- A
- Side 1 - Gender
- male
- Side 1 - Mounting method
- inserted, screwed
- Side 1 - Threaded hole
- M12 x 1
- Side 1 - Tightening torque
- 0.6 Nm
- Side 1 - Width across flats
- SW18
- Side 1 - Cable outlet
- straight
- Side 1 - Degree of protection (EN IEC 60529)
- IP67
- Electrical data | Supply - Operating voltage AC max.
- 60 V
- Electrical data | Supply - Operating voltage DC max.
- 60 V
- Supply - Current operating per contact max.
- 4 A
- Supply - Operating voltage AC max. (UL-listed)
- 125 V
- Supply - Operating voltage DC max. (UL-listed)
- 125 V
- Supply - Current operating per contact max. (URc.)
- 3 A
- Installation - Connection cross section max.
- 0.75 mm²
- Installation | Connection - Tightening torque
- 0.6 Nm
- Installation | Connection - Width across flats
- SW18
- Electrical - Additional condition protection degree
- inserted, screwed
- Device protection | Electrical - Pollution Degree
- 3
- Electrical - Overvoltage category (EN 60664-1)
- III
- Electrical - Overvoltage category (EN 60950-1)
- II
- Device protection | Electrical - Rated surge voltage
- 1.5 kV
- Mechanical data | Material data - housing
- PA
- Mechanical data | Mounting data - Height
- 60 mm
- Mechanical data | Mounting data - Width
- 20 mm
- Mechanical data | Mounting data - Depth
- 20 mm
- Mechanical data | Mounting data - Mounting method
- inserted, screwed, Shaking protection
- Mechanical data | Mounting data - Clamping range min.
- 4 mm
- Mechanical data | Mounting data - Clamping range max.
- 6 mm
- Climatic - Operating temperature min.
- -40 °C
- Climatic - Operating temperature max.
- 85 °C
- Important installation notes - Note on bending radius
- Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
- Important installation notes - Note on strain relief
- Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
- ETIM-5.0
- EC002635
- ETIM-6.0
- EC002635
- ETIM-7.0
- EC002635
- ETIM-8.0
- EC002635
- ETIM-9.0
- EC002635
- ETIM-10.0
- EC002635
- Packaging unit
- 1
- ECLASS 14.0
- 27440106
