M12 male 0° A-cod. screw terminal V4A 5-POL., max. 0,75mm², 6 - 8mm
Pricing
Request a quote
We reply within 24 hours
Product Description

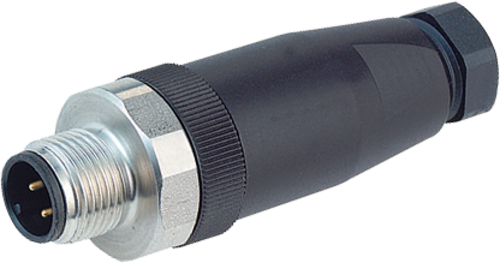

Murrelektronik 7004-12761-0000000 — M12 male 0° A-cod. screw terminal V4A 5-pol., max. 0,75mm², 6 - 8mm. V4A Food & Beverage Male straight M12, 5-pole Sealing range (cable Ø): 6.8 mm Stainless steel 1.4404 (V4A)
Technical Specifications
- Manufacturer part number (MPN)
- 7004-12761-0000000
- Model designation
- MSA-U9
- EAN / GTIN
- 4048879110952
- HS code
- 8536.69
- EU customs tariff number
- 85366990
- US customs tariff number
- 8536694020
- Weight
- 0.026 kg
- Country of origin
- HU
- Sales unit
- pcs
- Side 1 - Family construction form
- M12
- Side 1 - Degree of protection (EN IEC 60529)
- IP67
- Electrical data | Supply - Operating voltage AC max.
- 125 V
- Electrical data | Supply - Operating voltage DC max.
- 125 V
- Supply - Current operating per contact max.
- 4 A
- Installation - Connection cross section max.
- 0.75 mm²
- Installation | Connection - Tightening torque
- 0.6 Nm
- Installation | Connection - Mounting set
- M12 x 1
- Electrical - Additional condition protection degree
- inserted, screwed
- Mechanical data | Material data - Locking material
- Stainless steel 1.4404 (V4A)
- Mechanical data | Mounting data - Mounting method
- inserted, screwed, Shaking protection
- Mechanical data | Mounting data - Clamping range min.
- 6 mm
- Mechanical data | Mounting data - Clamping range max.
- 8 mm
- Climatic - Operating temperature min.
- -25 °C
- Climatic - Operating temperature max.
- 85 °C
- Important installation notes - Note on bending radius
- Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
- Important installation notes - Note on strain relief
- Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
- ETIM-5.0
- EC002635
- ETIM-6.0
- EC002635
- ETIM-7.0
- EC002635
- ETIM-8.0
- EC002635
- ETIM-9.0
- EC002635
- ETIM-10.0
- EC002635
- Packaging unit
- 1
- ECLASS 14.0
- 27440106
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4048879110952
- SAP 1000600640
- Code 8222423
