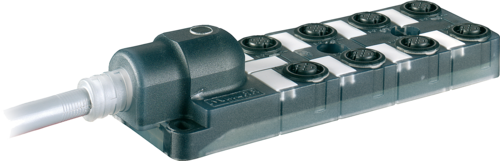

EXACT12, 8XM12, 5-Pole, Moulded Cable 5.0M PUR/PVC 16X0,34+3X0.75, UL/CSA

Murrelektronik 8000-88510-3980500 — EXACT12, 8XM12, 5-POLE, MOULDED CABLE 5.0m PUR/PVC 16x0,34+3X0.75, UL/CSA. 5.0M 8-way, 5-pole

Manufacturer part number (MPN)

8000-88510-3980500

Model designation

MVP12N-AN8F398

EAN / GTIN

4048879054027

HS code

8544.42

EU customs tariff number

85444290

US customs tariff number

8544429090

Weight

0.966 kg

Country of origin

DE

Sales unit

pcs

Electrical data | Supply - Operating voltage DC

24 V

Supply - Current operating per contact max.

4 A

Installation | Connection - Mounting set

M12 x 1

Electrical - Degree of protection (EN IEC 60529)

IP67, IP65

Device protection | Media - Flame resistance

flame retardant

Mechanical data | Material data - housing

Plastic

Mechanical data | Mounting data - Mounting method

Schraubgewinde

Mechanical data | Mounting data - Cable length

5 m

Climatic - Operating temperature min.

-20 °C

Climatic - Operating temperature max.

70 °C

Climatic - Additional condition temperature range

depending on cable quality

General data | Cable - Cable identification

398

General data | Cable - Cable Type

2

General data | Cable - Function cable

Hybrid, Signal, Power

General data | Cable - Cable weigth

150 g/m

General data | Cable - UL AWM Style

20549 / 1731

Structure | Cable - Stranding

1 × 7 wires around core filler twisted

Structure | Cable - Stranding (type 2)

1 × 12 wires stranded around stranding combination

Structure | Cable - Filler

Yes

Structure | Cable - Wire arrangement

(WH, GYPK, BNGN, YE, GNWH, GN, RDBU), BNGY, BK, GYWH, RD, BNYE, PK, YEWH, GY, BU, BN, GNYE, VT

Wire data | Cable - Material wire insulation

PVC

Wire data | Cable - Amount wires

16

Wire data | Cable - Outer diameter insulation

1.3 mm ± 0.1 mm

Wire data | Cable - Conductor crosssection (wire)

0.34 mm²

Wire data | Cable - Material conductor wire

Stranded copper wire, bare

Wire data | Cable - Core construction (wire)

19 × 0.15 mm

Wire data | Cable - Material properties wire insulation

good machinability

Wire data | Cable - Ingredient freeness wire insulation

lead-free, cadmium-free, CFC-free, silicone-free

Wire data | Cable - Electrical function wire (type 2)

Power

Wire data | Cable - Material wire insulation (type 2)

PVC

Wire data | Cable - Amount wires (type 2)

3

Cable - Outer diameter wire insulation (type 2)

1.8 mm ± 0.1 mm

Wire data | Cable - Conductor crosssection (wire type 2)

0.75 mm²

Wire data | Cable - Material conductor wire (type 2)

Stranded copper wire, bare

Wire data | Cable - Core construction (wire type 2)

42 × 0.15 mm

Cable - Material properties wire insulation (type 2)

good machinability

Cable - Ingredient freeness wire insulation (type 2)

lead-free, cadmium-free, CFC-free, silicone-free

Jacket data | Cable - Material jacket

PUR

Jacket data | Cable - Outer-diameter (jacket)

10 mm ± 5 %

Jacket data | Cable - Jacket Color

gray / RAL 7040

Jacket data | Cable - Material inner jacket

PVC

Jacket data | Cable - Color (inner jacket)

gray

Jacket data | Cable - Freedom from ingredients (jacket)

lead-free, cadmium-free, CFC-free, silicone-free

Jacket data | Cable - Material property (jacket)

abrasion-resistant, low adhesion, good machinability, matte

Electrical data | Cable - Conductor resistance (wire)

57 Ω/km @ 20 °C

Cable - Conductor resistance (wire type 2)

26 Ω/km @ 20 °C

Cable - Max. rated voltage (conductor - ground)

300 V

Cable - Max. rated voltage (conductor - conductor)

300 V

Electrical data | Cable - Withstand voltage (wire - wire)

2 kV @ 60 s

Cable - Withstand voltage (wire - jacket)

2 kV @ 60 s

Cable - Current load capacity max. (wire)

4 A

Cable - Current load capacity max. Wire (type 2)

12 A

Electrical data | Cable - Current load capacity (standard)

to DIN VDE 0298-4

Temperature range | Cable - Operating temperature (static)

-30 °C … 80 °C

Cable - Operating temperature (dynamic)

-5 °C … 70 °C

Cable - Operating temperature (drag chain)

-5 °C … 60 °C

Resistances | Cable - Flame resistance

UL 1581 § 1090, CSA FT2, IEC 60332-2-2

Resistances | Cable - Oil resistance

IEC 60811-404

Resistances | Cable - Chemical resistance

good

Resistances | Cable - Other resistances

good resistance to gasoline, resistant to hydrolysis, resistant to microbes

Resistances | Cable - Notes

application-related testing

Installation | Cable - Bending radius (fixed)

5 × Outer diameter

Installation | Cable - Bending radius (dynamic)

10 × Outer diameter

Installation | Cable - No. of bending cycles (C-track)

2 Mio. @ 25 °C

Installation | Cable - Traversing distance (C-track)

5 m @ 25 °C

Installation | Cable - Travel speed (C-track)

2 m/s @ 25 °C

Installation | Cable - Acceleration (C-track)

10 m/s² @ 25 °C

Connection type 1 - Family construction form

free cable end

Connection type 1 - No. of poles

19

Connection type 2 - Family construction form

M12

Connection type 2 - No. of poles

5

Connection type 2 - Coding

A

Connection type 2 - Gender

female

Connection type 2 - Color contact carrier

black

Connection type 2 - PIN 1

+

Connection type 2 - PIN 2

NC S 2

Connection type 2 - PIN 4

NO S 1

Connection type 2 - PIN 5

PE

ETIM-5.0

EC002585

ETIM-6.0

EC002585

ETIM-7.0

EC002585

ETIM-8.0

EC002585

ETIM-9.0

EC002585

ETIM-10.0

EC002585

Packaging unit

1

ECLASS 14.0

27440108

HS Code

8544.42

• EAN 4048879054027
• SAP 1000434180
• Code 843677
