Melbye
SolidLED Cold (6685013)
Part number6685013EAN / GTIN7070701316338HS code9405.40
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

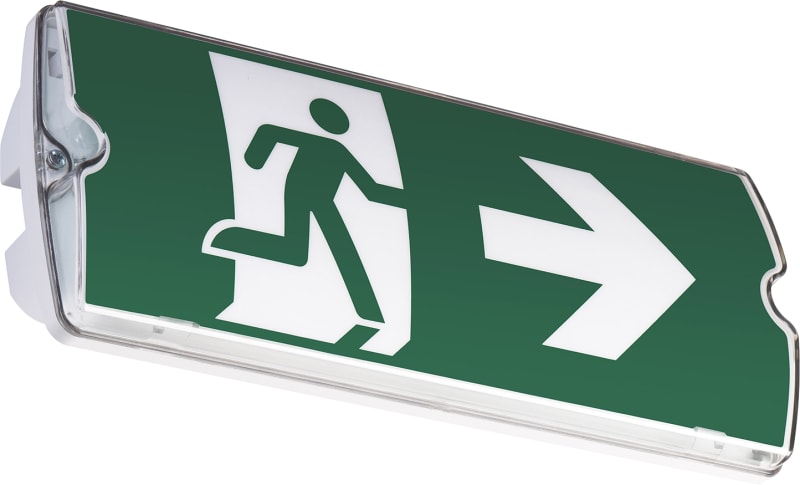

Melbye 6685013 Emergency lighting. Exit sign luminaire and guide light for kalde zones/ outdoor, IP65, viewing distance 26m.
Technical Specifications
- Manufacturer part number (MPN)
- 6685013
- EAN / GTIN
- 7070701316338
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Protection class according to IEC 61140
- II
- Width
- 170 mm
- Lamp holder
- None
- Conductor cross section
- 2.5 mm²
- Connection type
- Push-in clamp
- Housing colour
- White
- Voltage type
- AC
- Type of control gear
- Electronic transformer
- Colour rendering index CRI
- 90-100
- Number of poles
- 2
- Length
- 360 mm
- Height/depth
- 160 mm
- Housing material
- Plastic
- Lamp type
- LED not exchangeable
- Material cover
- Plastic, transparent
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Suitable for surface mounting
- Yes
- Colour temperature
- 3500–4000 K
- Rated luminous flux according to IEC 62722-2-1
- 300 lm
- Colour of light
- White
- Type of wiring
- Suitable for loop-through wiring
- LED nominal current at constant current
- 0.05 mA
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- Yes
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- No
- Dimming depending on control gear
- No
- Dimming DSI
- No
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 9405.40
Cross References
- EAN 7070701316338
- SAP 1200078271
- Code 81931256
