Melbye
Emergency lighting, KC LED 24V
Part number6685006HS code9405.69
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

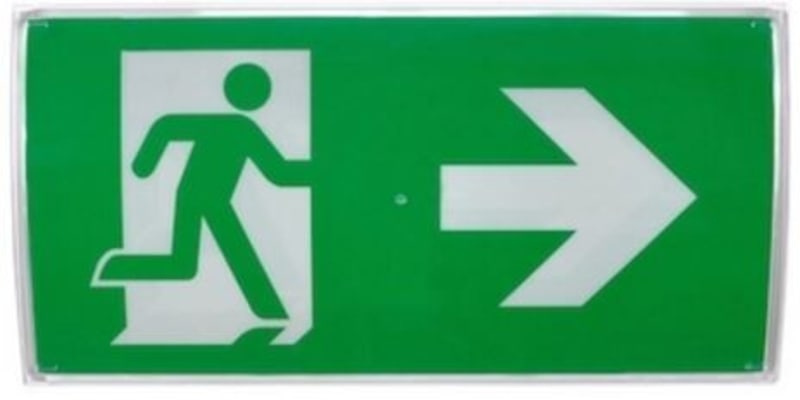

Melbye 6685006 KC LED 24V Marking-/guide light.
Technical Specifications
- Manufacturer part number (MPN)
- 6685006
- Sales unit
- pcs
- El-nummer (NO)
- 6685006
- ETIM class
- SC001957
- Voltage
- 24 V
- Mounting method
- Wall surface mounting/ceiling surface mounting
- Function
- Escape route lighting/signage
- Suitable for labelling type
- Insert sheet/plate
- With pictogram
- Yes
- Monitoring equipment
- None
- With remote switch connection
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- NiMH
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 1
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Nominal voltage
- 24 V
- Type of control gear
- Not required
- Light distributor
- None
- Degree of protection (IP)
- IP54
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 0–40 °C
- Recognition distance
- 30 m
- Width
- 340 mm
- Height/depth
- 60 mm
- Length
- 170 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Emergency function monitoring system
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9405.69
Cross References
- 7070701230979
- El-nr 6685006
Product Documentation
Document preview: Emergency lighting, KC LED 24V (6685006) — Specification sheet
