ISO-terminal5209/3S/K
Pricing
Request a quote
We reply within 24 hours
Product Description

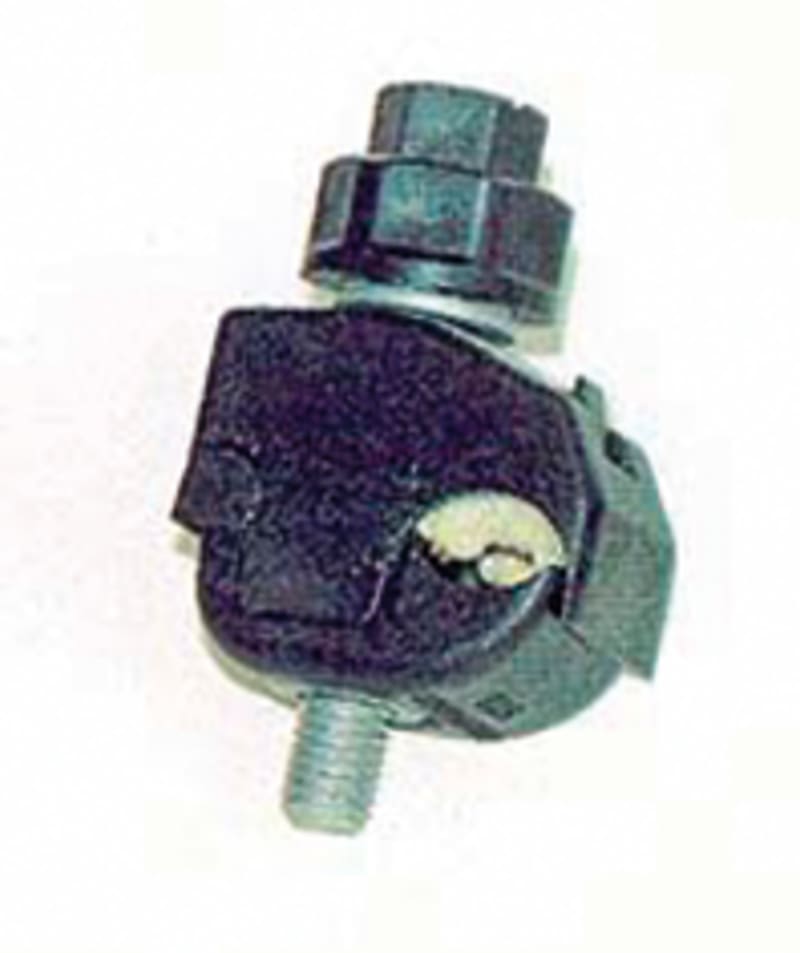

Melbye 5209/3S/K Insulated piercing connector for connection EX pendant cord with torque screw.
Technical Specifications
- Manufacturer part number (MPN)
- 5209/3S/K EAN / GTIN: 7070701028972 Sales unit: pcs Package quantity: 40 pcs Type of connection: Screw connection Surface protection: Tinned Nominal cross section main conductor, SE: 16–120 mm² Nominal cross section main conductor, SM: 16–120 mm² Nominal cross section branch conductor, SM/RM: 1.5–6 mm² Nominal cross section branch conductor, SE/RE: 1.5–6 mm² material main conductor: Aluminium/copper material branch conductor: Aluminium/copper Terminal insulated: Yes Clamping channel opening main conductor: Both sides open Clamping channel opening branch conductor: Both sides open
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701028972
- SAP 1000035034
- Code 8268085
Product Documentation
More from Melbye
Melbye
End termination 1KV 5X25-50MM²
1166599
Melbye
Melbye Screw Splice Joint 1kV 3x16-25 mm² Heat-Shrink Halogen-Free
MPC-2
Melbye
Melbye Stringing Block ST 26.33 Hook Suspension 12 kN
64 558 08
Melbye
Screw Cable Lug 1-36KV 25-95X12
1-36kV L25-95x12 Al/Cu
Melbye
Melbye A4-12ET Insulated Wire-End Ferrule, 4 mm² / 12 mm (Grey)
Melbye
Melbye A2565R Insulated Ring Terminal, 2.5 mm² M6 (Blue)
Melbye
Melbye Screw-Connector Heat-Shrink Joint 1 kV, 3x16-50 mm2
MPC-3
Melbye
Voltage Indicator for Railway Catenary 16 kV, 16 2/3 Hz
8880018
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5209/3S/K?
- 5209/3S/K can be ordered from cballast.com as a Melbye catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Melbye product?
- The manufacturer part number is 5209/3S/K.
- What is the HS code for 5209/3S/K?
- The customs tariff (HS) code for 5209/3S/K is 8536.90.
- Who manufactures 5209/3S/K?
- 5209/3S/K is a Melbye product in the Electrical Components range.
- Is a datasheet available for 5209/3S/K?
- Yes — the 5209/3S/K datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5209/3S/K?
- The minimum order quantity is 1.
- Is 5209/3S/K available?
- Yes — 5209/3S/K is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
