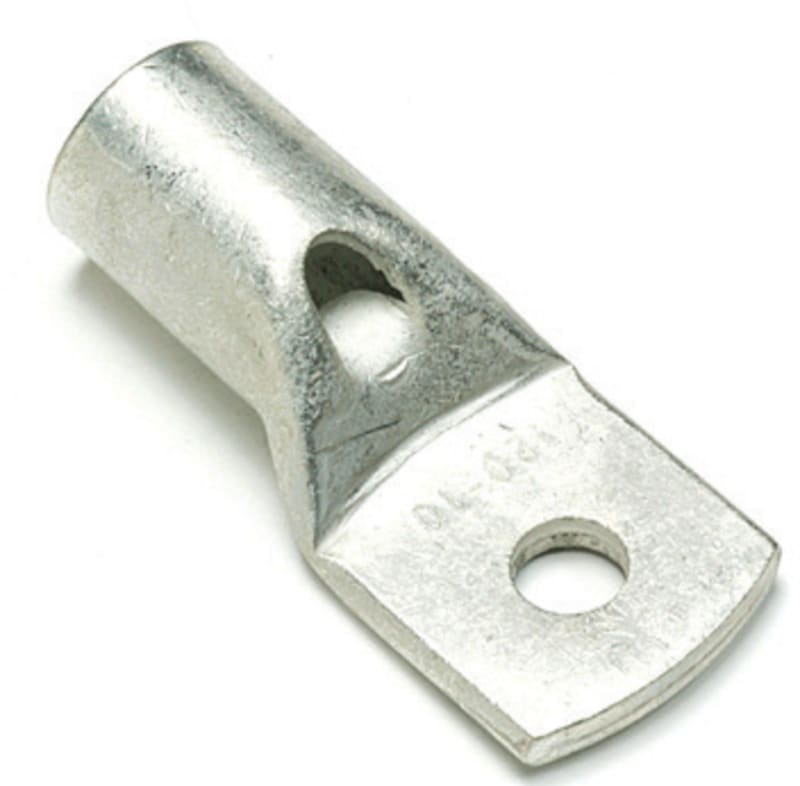

Melbye KRF35-8 Non-Insulated Copper Tube Cable Lug, 35 mm² M8
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye KRF35-8 — non-insulated compression cable lug (copper tube terminal) for a 35 mm² copper conductor, with an M8 stud hole. Barrel accepts conductor outer diameter 9–13 mm; overall length 45 mm. Tin-plated electrolytic copper (Cu 99.95%) to DIN 46235; crimp compression with the number of crimps marked on the barrel neck. For flexible (Class 5) and stranded (Class 2) copper conductors per IEC 60228.
Technical Specifications
- Product type
- Non-insulated copper tube cable lug (compression)
- Conductor cross-section
- 35 mm²
- Stud hole
- M8
- Conductor entry Ø
- 9–13 mm
- Overall length
- 45 mm
- Material
- Tin-plated electrolytic copper (Cu 99.95%)
- Standard
- DIN 46235
- Manufacturer part number (MPN)
- KRF35-8
- EAN / GTIN
- 7070701015538
- HS code
- 8544.42
- Sales unit
- pcs
- Halogen free
- Yes
- Surface protection
- Tinned
- Insulation
- None
- Total length
- 45 mm
- Flange shape
- Ring shape
- For pull protected connections
- No
- Reel/roll packaging
- No
- Bolt dimension (metric)
- 8
- AWG-range
- 2
- Nominal cross section
- 35 mm²
- Suitable for fine strand conductors
- Yes
- Suitable for flat conductors
- No
- Suitable for insulated varnish
- No
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- According to DIN
- No
- Country of origin
- Finland
Standards & Compliance
- Standard
- DIN 46235
- Material
- Tin-plated electrolytic copper (Cu 99.95%)
- HS Code
- 8544.42
Cross References
- EAN 7070701015538
- SAP 1000034418
- Code 8266574
Product Documentation
