Melbye

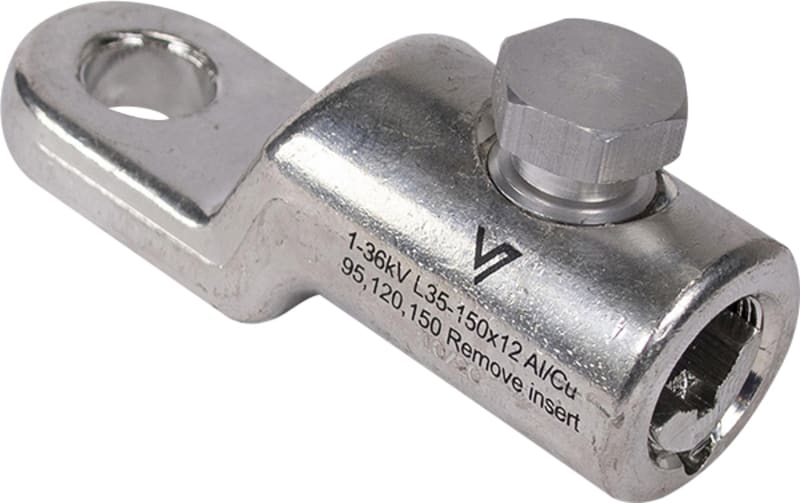

Screw Cable Lug 1-36KV 35-150X12
Part number1-36kV L35-150x12 Al/CuEAN / GTIN7070701349909HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 1-36kV L35-150x12 Al/Cu Screw Cable Lug 1-36kV.
Technical Specifications
- Manufacturer part number (MPN)
- 1-36kV L35-150x12 Al/Cu
- EAN / GTIN
- 7070701349909
- Sales unit
- pcs
- Package quantity
- 120 pcs
- Surface protection
- Tinned
- Conductor material
- Aluminium/copper
- With shear-off head
- Yes
- Bolt dimension (metric)
- 12
- Nominal cross section copper, RM
- 35–150 mm²
- Nominal cross section copper, RE
- 35–150 mm²
- Nominal cross section copper, SM
- 35–120 mm²
- Nominal cross section aluminium, RM
- 35–150 mm²
- Nominal cross section aluminium, RE
- 35–120 mm²
- Nominal cross section aluminium, SM
- 35–120 mm²
- Nominal cross section aluminium, SE
- 35–95 mm²
- Material conductor
- Aluminium/copper
- Min. AWG-size
- 2
- Max. AWG-size
- 300 kcmil
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349909
- SAP 1200524250
- Code 82675954
Product Documentation
Document preview: Screw Cable Lug 1-36KV 35-150X12 (1-36KV L35-150X12 Al/Cu) — Specification sheet
