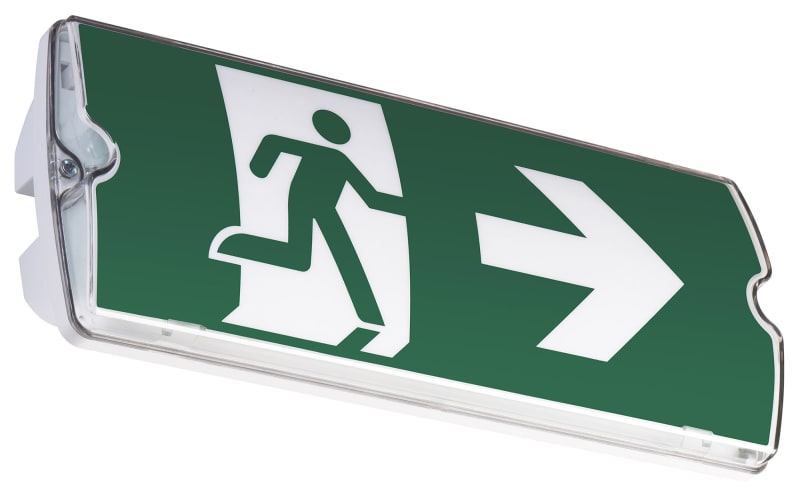

Emergency lighting, SolidLED 24V AC/DC

Melbye 6685009 Emergency lighting, SolidLED 24V AC/DC.

Manufacturer part number (MPN)

6685009

EAN / GTIN

7070701232058

Sales unit

pcs

Package quantity

28 pcs

Voltage

24 V

Mounting method

Wall surface mounting/ceiling surface mounting

Function

Escape route lighting/signage

Suitable for labelling type

Insert sheet/plate

With pictogram

Yes

Monitoring equipment

Safety module for monitoring (central feeded system)

With remote switch connection

No

Power supply system

Central (central battery)

Battery technology

NiMH

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

1

Lamp holder

None

Number of lighting heads

1

Housing material

Plastic

Housing colour

White

Material cover

Plastic, transparent

Voltage type

AC/DC

Nominal voltage

220–240 V

LED nominal current at constant current

0.05 mA

Type of control gear

Not required

Light distributor

None

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Degree of protection (IP)

IP65

Protection class according to IEC 61140

II

Rated ambient temperature according to IEC 62722-2-1

0–40 °C

Recognition distance

26 m

Width

165 mm

Height/depth

75 mm

Length

375 mm

Type of wiring

Suitable for loop-through wiring

Number of poles

2

Conductor cross section

2.5 mm²

Connection type

Plug-in connection

Emergency power supply system

Central (central battery)

Country of origin

Türkiye

HS Code

9405.60

• EAN 7070701232058
• SAP 1200590174
• Code 83022197
