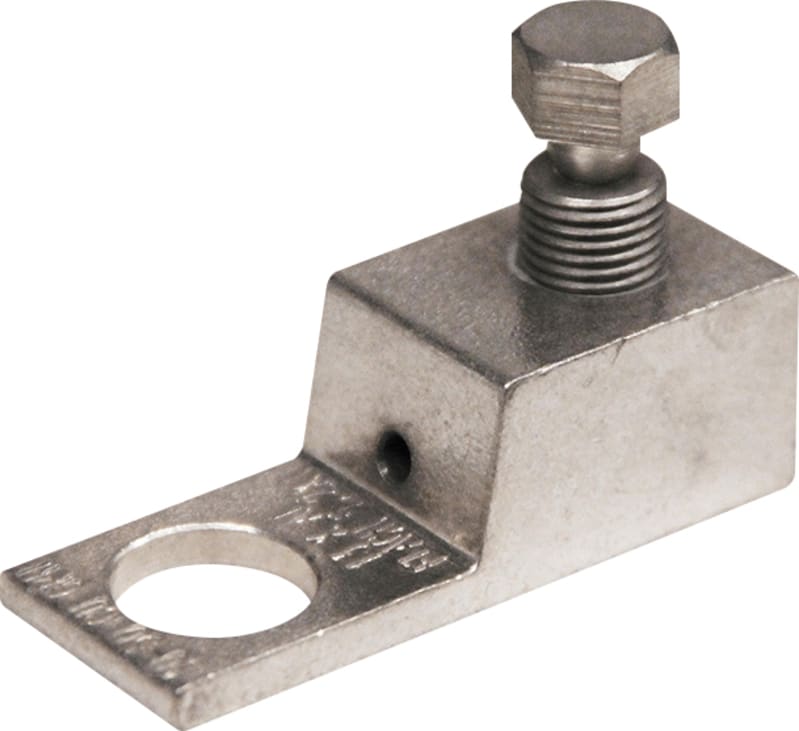

Screw Cable Lug, Shield Wire, 10-50 mm² x M12, 1-36 kV (LS10-50x12 Cu)
Pricing
Request a quote
We reply within 24 hours
Product Description
Mechanical screw cable lug with shear-off head for terminating shield wires on medium-voltage cables, 1-36 kV. Bare copper body accepting 10-50 mm² copper or aluminium conductors (RM, RE, SM and SE constructions) onto an M12 stud. Supplied in packs of 384.
Technical Specifications
- Manufacturer part number (MPN)
- 1-36kV LS10-50x12 Cu
- EAN / GTIN
- 7070701349718
- Sales unit
- pcs
- Package quantity
- 384 pcs
- Surface protection
- Bare
- Conductor material
- Copper
- With shear-off head
- Yes
- Bolt dimension (metric)
- 12
- Nominal cross section copper, RM
- 10–50 mm²
- Nominal cross section copper, RE
- 10–50 mm²
- Nominal cross section copper, SM
- 10–35 mm²
- Nominal cross section aluminium, RM
- 10–50 mm²
- Nominal cross section aluminium, RE
- 10–35 mm²
- Nominal cross section aluminium, SM
- 10–35 mm²
- Nominal cross section aluminium, SE
- 10–35 mm²
- Material conductor
- Copper
- Min. AWG-size
- 8
- Max. AWG-size
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349718
- SAP 1200524239
- Code 82675953
Product Documentation
More from Melbye
Melbye
Spacer Bracket AF100
2857700
Melbye
C-Compression Clamp 120-150/35-50
C16-9 120-150/35-50
Melbye
Well Cover Wrench B125, A15, Penta
2822014
Melbye
Heat-shrink tubing clear 3/1 mm 10M
1835637
Melbye
Cover for ceilingmounting of SolidLED Slim
6685019
Melbye
Screw Cable Lug 1KV 120-300X12
2018413
Melbye

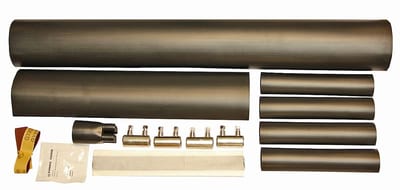

Cable Joint, 4x50 to 3/4x16-50 mm², 1 kV, Mechanical Sleeves
1167446
Melbye

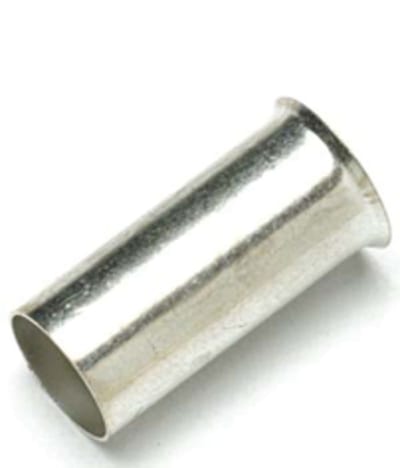

UNINSULATED END SLEEVE B4-12ET
