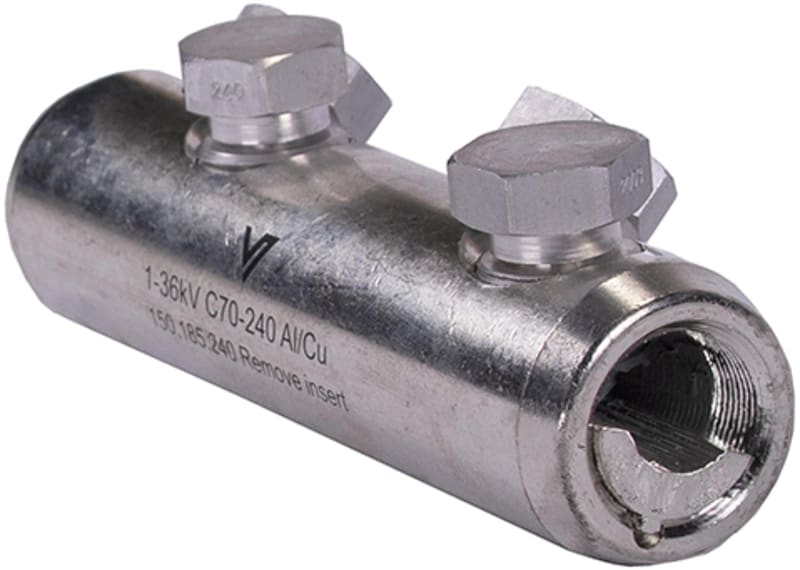

Melbye Screw Splice Sleeve 1-36 kV 70-240 mm² Al/Cu
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 1-36kV C70-240 Al/Cu is a mechanical shear-head screw splice sleeve for jointing medium-voltage cable conductors up to 36 kV. The tinned body accepts aluminium or copper conductors in RM, RE, SM, and SE cross sections between 70 and 240 mm² through four shear bolts, with an internal oil-stop centre bar. IP00 rated for use inside an insulated joint kit, supplied uninsulated in packs of 60, manufactured in China. Typical applications include jointing and terminating medium-voltage cables for utility and industrial power networks.
Technical Specifications
- Manufacturer part number (MPN)
- 1-36kV C70-240 Al/Cu
- EAN / GTIN
- 7070701349848
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Surface protection
- Tinned
- Number of screws
- 4
- Oil stop/centre bar
- Yes
- Conductor material
- Aluminium/copper
- Voltage level
- Up to 36 kV
- Degree of protection (IP)
- IP00
- Nominal cross section copper, RM
- 70–240 mm²
- Nominal cross section copper, RE
- 70–240 mm²
- Nominal cross section copper, SM
- 70–185 mm²
- Nominal cross section aluminium, RM
- 70–240 mm²
- Nominal cross section aluminium, RE
- 70–240 mm²
- Nominal cross section aluminium, SM
- 70–185 mm²
- Nominal cross section aluminium, SE
- 70–150 mm²
- Material conductor
- Aluminium/copper
- With soldering hole
- No
- With insulation
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349848
- SAP 1200524244
- Code 82675935
