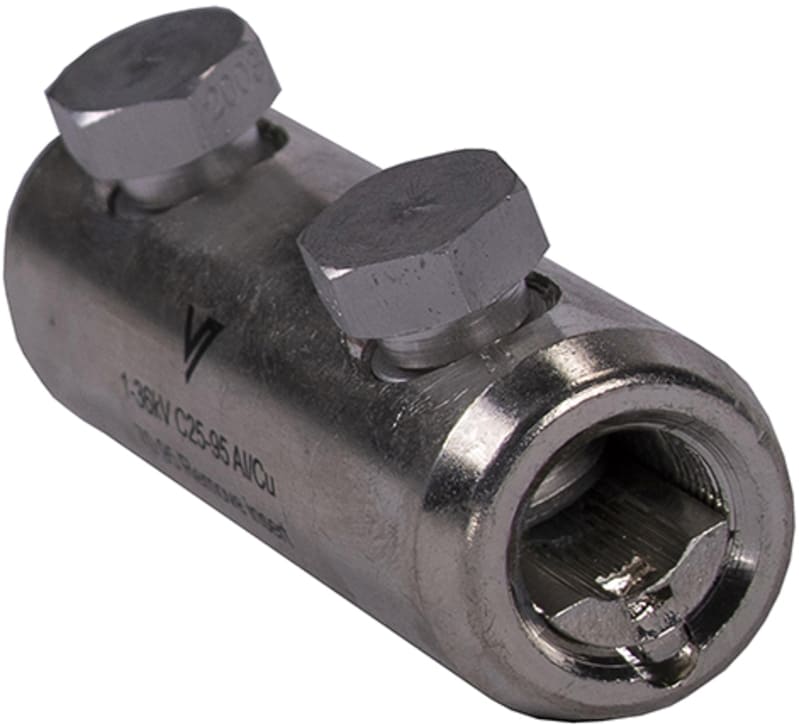

Melbye 1-36kV Screw Splice Sleeve C25-95 Al/Cu Two-Bolt
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 1-36kV C25-95 Al/Cu is a tinned two-bolt screw splice sleeve for jointing medium-voltage cable conductors rated up to 36 kV. It accepts stranded copper 25-95 mm² and aluminium 25-95 mm² conductors and includes an integrated oil-stop centre bar for paper-insulated cable applications. The bimetallic aluminium/copper body carries an IP00 rating and is used inside cable joint kits for utility distribution and industrial power networks.
Technical Specifications
- Manufacturer part number (MPN)
- 1-36kV C25-95 Al/Cu
- EAN / GTIN
- 7070701349824
- Sales unit
- pcs
- Package quantity
- 160 pcs
- Surface protection
- Tinned
- Number of screws
- 2
- Oil stop/centre bar
- Yes
- Conductor material
- Aluminium/copper
- Voltage level
- Up to 36 kV
- Degree of protection (IP)
- IP00
- Nominal cross section copper, RM
- 25–95 mm²
- Nominal cross section copper, RE
- 25–95 mm²
- Nominal cross section copper, SM
- 25–70 mm²
- Nominal cross section aluminium, RM
- 25–95 mm²
- Nominal cross section aluminium, RE
- 25–95 mm²
- Nominal cross section aluminium, SM
- 25–70 mm²
- Nominal cross section aluminium, SE
- 25–50 mm²
- Material conductor
- Aluminium/copper
- With soldering hole
- No
- With insulation
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349824
- SAP 1200524242
- Code 82675949
Product Documentation
