Melbye

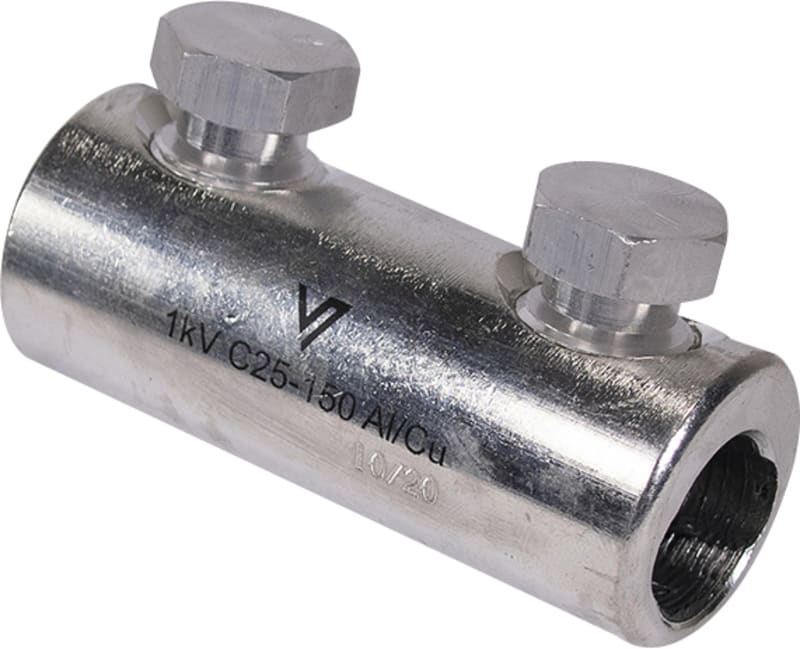

Melbye Screw Splice Sleeve 1 kV 25-150 mm² Al/Cu
Part number1kV C25-150 Al/CuEAN / GTIN7070701349770HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 1kV C25-150 Al/Cu mechanical screw splice sleeve rated 1 kV, tested to IEC 61238-1.
Technical Specifications
- Manufacturer part number (MPN)
- 1kV C25-150 Al/Cu
- EAN / GTIN
- 7070701349770
- Sales unit
- pcs
- Package quantity
- 120 pcs
- Surface protection
- Tinned
- Number of screws
- 2
- Oil stop/centre bar
- Yes
- Conductor material
- Aluminium/copper
- Degree of protection (IP)
- IP00
- Nominal cross section copper, RM
- 25–150 mm²
- Nominal cross section copper, RE
- 25–150 mm²
- Nominal cross section copper, SM
- 35–150 mm²
- Nominal cross section aluminium, RM
- 25–150 mm²
- Nominal cross section aluminium, RE
- 25–150 mm²
- Nominal cross section aluminium, SM
- 35–150 mm²
- Nominal cross section aluminium, SE
- 35–150 mm²
- Material conductor
- Aluminium/copper
- With soldering hole
- No
- Nominal cross section, class 5
- 25–70 mm²
- With insulation
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349770
- SAP 1200524257
- Code 82675931
Product Documentation
Document preview: Melbye Screw Splice Sleeve 1 kV 25-150 mm² Al/Cu (1kV C25-150 Al/Cu) — Specification sheet
