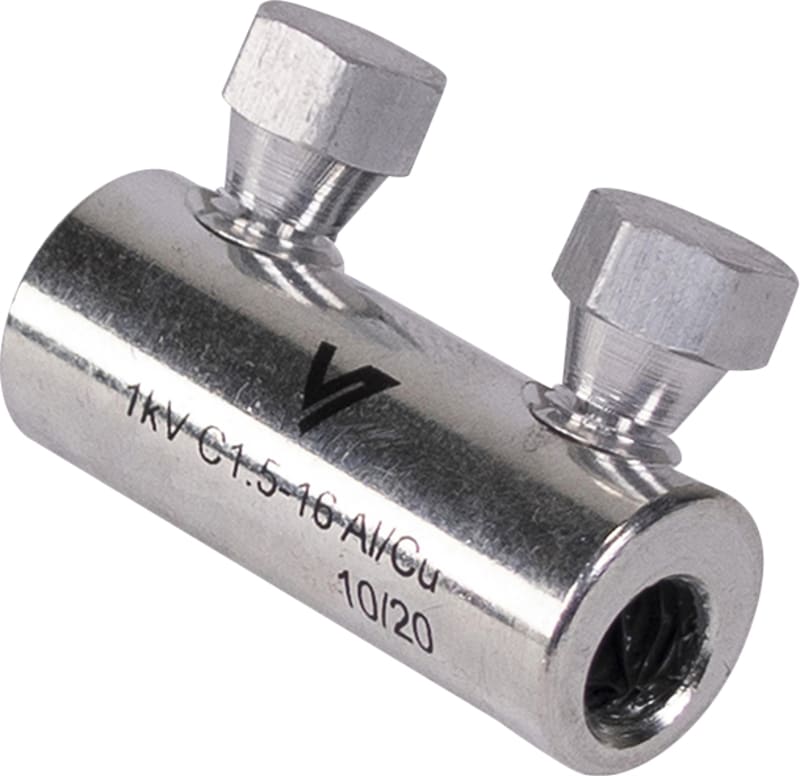

Melbye Screw Splice Sleeve 1 kV 1.5-16 mm² Al/Cu
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 1kV C1,5-16 Al/Cu screw splice sleeve rated 1 kV for aluminium and copper conductors from 1.5 to 16 mm².
Technical Specifications
- Manufacturer part number (MPN)
- 1kV C1,5-16 Al/Cu
- EAN / GTIN
- 7070701349732
- Sales unit
- pcs
- Package quantity
- 1440 pcs
- Surface protection
- Tinned
- Number of screws
- 2
- Oil stop/centre bar
- Yes
- Conductor material
- Aluminium/copper
- Degree of protection (IP)
- IP00
- Nominal cross section copper, RM
- 1.5–16 mm²
- Nominal cross section copper, RE
- 1.5–16 mm²
- Nominal cross section copper, SM
- 1.5–16 mm²
- Nominal cross section aluminium, RM
- 10–16 mm²
- Nominal cross section aluminium, RE
- 10–16 mm²
- Material conductor
- Aluminium/copper
- With soldering hole
- No
- Nominal cross section, class 5
- 1.5–16 mm²
- With insulation
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349732
- SAP 1200524255
- Code 82675947
Product Documentation
