Melbye MPC-M-45 Complete LV Cable Joint 4x50-95 mm² with Screw Sleeves
Pricing
Request a quote
We reply within 24 hours
Product Description

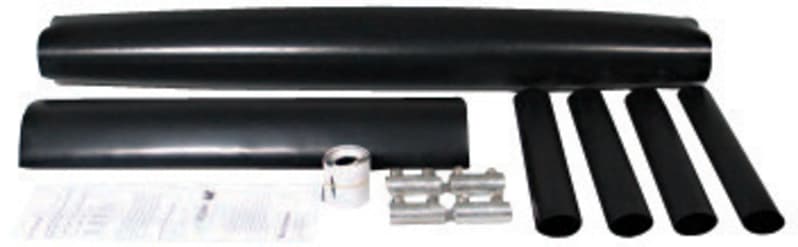

Melbye MPC-M-45 is a complete heat-shrink joint kit for four-core low-voltage cables with conductor cross-sections of 50 to 95 mm² at 0.6/1 (1.2) kV. The set includes four aluminium/copper shear-head screw connectors, halogen-free plastic insulating components and the outer heat-shrink sleeving required for a finished straight joint. Typical use is repair or extension of paper- and plastic-insulated distribution cables in ducted and direct-buried routes.
Technical Specifications
- Manufacturer part number (MPN)
- MPC-M-45
- EAN / GTIN
- 7070701078762
- Sales unit
- pcs
- Model
- Heat-shrink
- Halogen free
- Yes
- Number of conductors
- 4
- Insulating material
- Plastic
- With concentric shielding
- No
- Nominal cross section conductor
- 50–95 mm²
- For connection of paper- with plastic insulated cables
- No
- Connection accessories included
- Screw connector with shear-off head
- Rated voltage U0/U (Um)
- 0.6/1 (1.2) kV
- Country of origin
- China
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 7070701078762
- SAP 1000069417
- Code 8771579
Product Documentation
