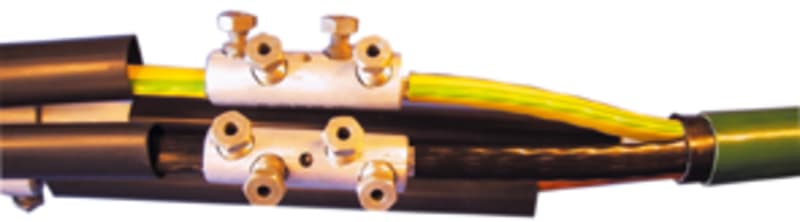

Melbye MPC-4 Heat-Shrink Screw Joint 1 kV 3 × 50–150 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
The Melbye MPC-4 is a complete heat-shrink cable joint kit for three-core low-voltage cables with conductor cross-sections of 50 to 150 mm², rated 0.6/1 kV. The kit includes four screw sleeves for aluminium and copper conductors using shear-off-head screw connectors and halogen-free plastic insulation. Typical application is jointing of plastic-insulated distribution cables in underground and industrial installations.
Technical Specifications
- Manufacturer part number (MPN)
- MPC-4
- EAN / GTIN
- 7070701008905
- Sales unit
- pcs
- Conductor cross-section
- 50-150 mm²
- Model
- Heat-shrink
- Halogen free
- Yes
- Number of conductors
- 3
- Insulating material
- Plastic
- With concentric shielding
- No
- Nominal cross section conductor
- 50–150 mm²
- For connection of paper- with plastic insulated cables
- No
- Connection accessories included
- Screw connector with shear-off head
- Rated voltage U0/U (Um)
- 0.6/1 (1.2) kV
- Country of origin
- China
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 7070701008905
- SAP 1000027009
- Code 8215480
Product Documentation
