Product Description

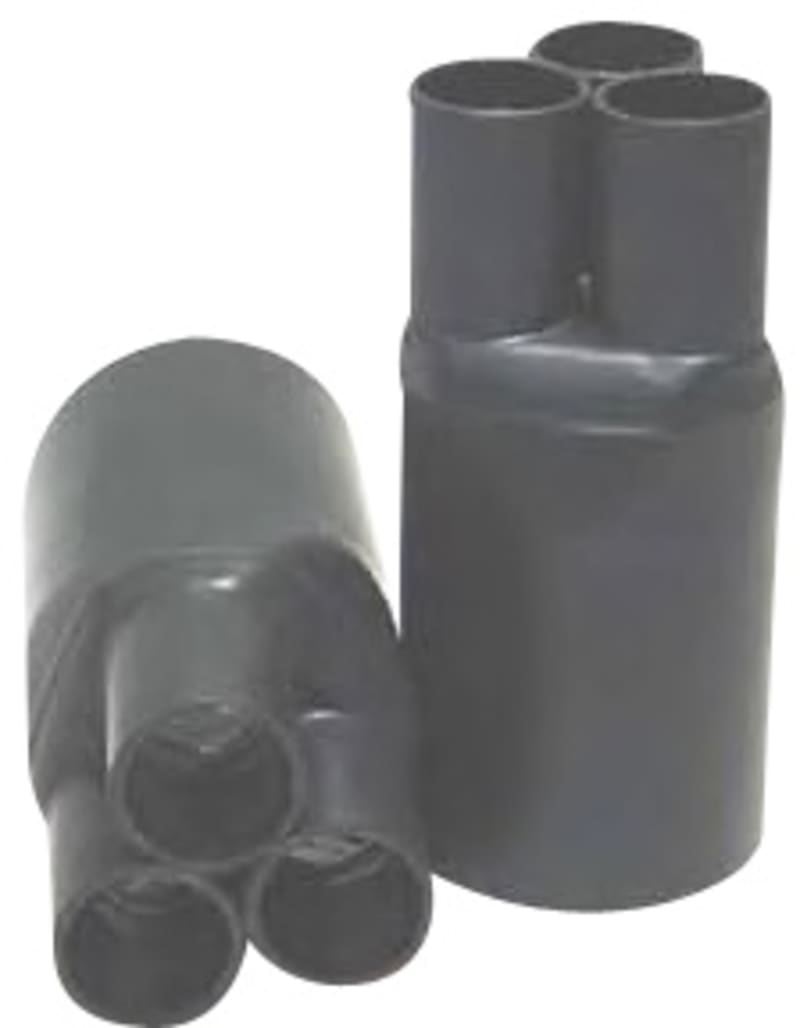

The Melbye MSB3 110/35 is a heat-shrink joint kit for sealing three-core cable ends, internally coated with adhesive and UV-resistant for outdoor use. Nominal conductor cross-section range is 150 mm² to 400 mm², with the main shaft shrinking from 110 mm to 35 mm and the finger sleeves reducing from 17 mm to 4 mm. Total assembly length after shrinking is 210 mm, and the operating temperature range is -30 °C to 135 °C. Supplied five per pack, country of origin India.
Technical Specifications
- Manufacturer part number (MPN)
- MSB3 110/35
- EAN / GTIN
- 7070701008509
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Conductor cross-section
- 150-400 mm²
- Type
- Heat-shrink
- Model
- For 3-core cables
- Nominal cross section
- 150–400 mm²
- Diameter shaft before shrink
- 110 mm
- Diameter shaft after shrink
- 35 mm
- Total length after shrink
- 210 mm
- Inner diameter finger before shrink
- 17 mm
- Inner diameter finger after shrink
- 4 mm
- Operating temperature
- -30–135 °C
- Country of origin
- India
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 7070701008509
- SAP 1000000880
- Code 816816
Product Documentation
