Melbye AKP50 Aluminium-Copper Bimetallic Pin Socket — 50 mm² Al Conductor, 9.6 mm Cu Pin

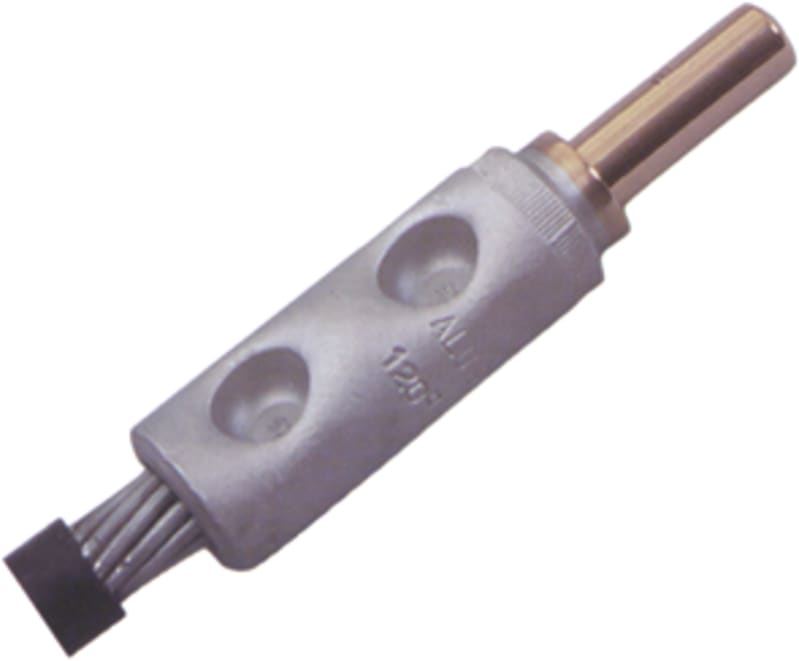

Melbye AKP50 — aluminium-copper (AlCu) bimetallic pin socket that terminates a 50 mm² (stranded) / 70 mm² (solid) aluminium conductor and presents a 9.6 mm solid copper pin for connection to copper-terminal apparatus such as screw or clamp terminals, isolators and circuit-breakers. The aluminium compression barrel is friction-welded to the copper pin from solid material, joining the dissimilar metals directly without a bimetal washer, and an internal oil-stop barrier separates the conductor from the pin. Two compression crimps are made on the aluminium barrel with the matching die; overall length 88 mm, strip length 45 mm. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors and is tested to IEC 61238-1. RoHS 2011/65/EU, REACH; CE marked.

Type

Aluminium-copper (AlCu) bimetallic pin socket

Function

Terminates an aluminium conductor and presents a solid copper pin for connection to copper-terminal apparatus

Conductor cross-section (aluminium)

50 mm² (stranded) / 70 mm² (solid)

Copper pin diameter

9.6 mm

Overall length

88 mm

Strip length

45 mm

Material

Friction-welded solid aluminium barrel and solid copper pin (bimetallic)

Barrier

Internal oil-stop centre stop

Crimp

Two compression crimps on the aluminium barrel

Conductor class

Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium

Compression connector standard

IEC 61238-1

Compliance

RoHS 2011/65/EU, REACH; CE marked

Manufacturer part number (MPN)

AKP50

EAN / GTIN

7070701017907

Sales unit

pcs

Package quantity

24 pcs

HS code

8536.90

HS Code

8536.90

• EAN 7070701017907
• SAP 1000020854
• Code 8170155
