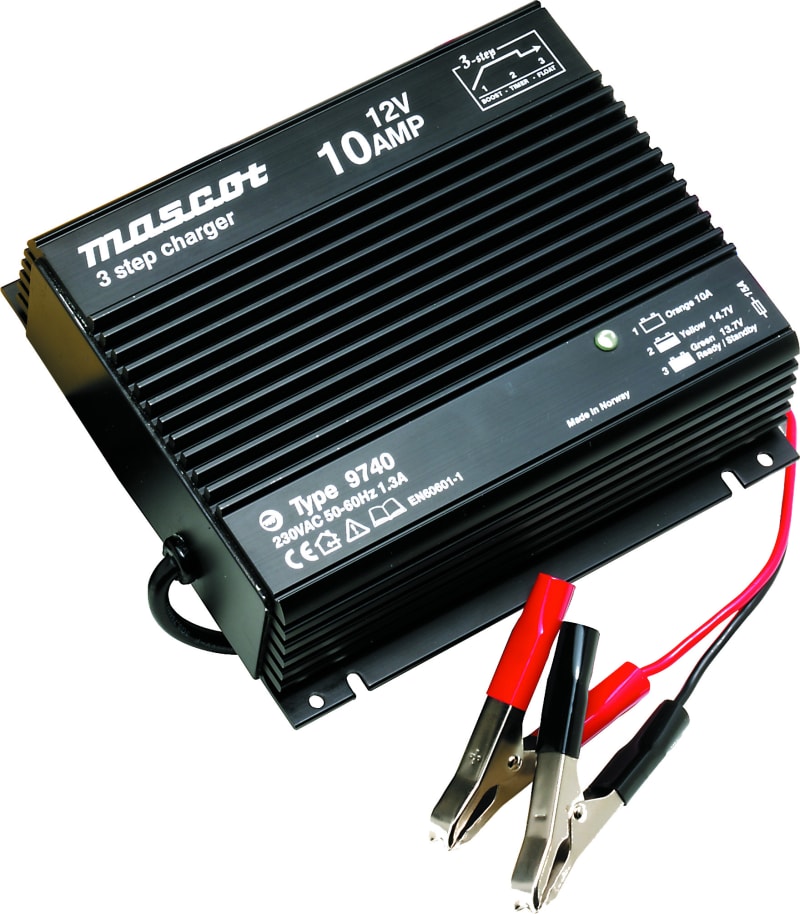

Mascot 9740 12 V 10 A Three-Stage Lead-Acid Battery Charger
Pricing
Request a quote
We reply within 24 hours
Product Description
Switch-mode three-stage charger for 12 V lead-acid batteries at up to 10 A, supporting fast bulk charging followed by absorption and float maintenance until the battery is full. Suitable for standby and back-up applications with a load connected in parallel, and capable of recovering deeply discharged batteries. Wide input from 230 V AC 50/60 Hz, ambient range -25 to +45 °C, IP21 aluminium housing, supplied with crocodile clips.
Technical Specifications
- Manufacturer part number (MPN)
- 9740 3-STEGS BLY LA
- EAN / GTIN
- 7057070000488
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 12 V
- Rated current
- 10 A
- Battery technology
- Lead acid
- Suitable for starter batteries
- Yes
- Suitable for industrial batteries
- Yes
- Nominal input voltage 1
- 230 V
- Frequency
- 50/60 Hz
- Recommended battery capacity
- 40–400 Ah
- Max. loading current
- 10 A
- Float charger
- Yes
- Number of outgoing connections
- 1
- Power factor
- 83
- Ambient temperature
- -25–45 °C
- Overload-/temperature protection
- Yes
- Connector
- Crocodile clip
- Short-circuit protected
- Yes
- Degree of protection (IP)
- IP21
- Housing material
- Aluminium
- Height
- 54 mm
- Width
- 171 mm
- Depth
- 184 mm
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7057070000488
- SAP 1000073489
- Code 8564205
Product Documentation
